Schneider Circuit breaker, 3-pole, 690VAC, 250A Schneider Electric
Schneider Circuit breaker, 3-pole, 690VAC, 250A Schneider Electric

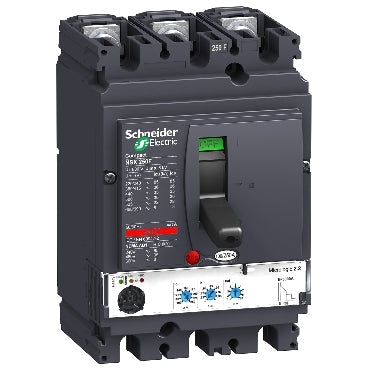

Schneider Circuit breaker, 3-pole, 690VAC, 250A Part number LV431770

This 3-pole circuit breaker provides overcurrent protection for three-phase circuits rated up to 690VAC and 250A. It is used to protect distribution circuits and connected equipment within control panels and switchboards, isolating the supply in the event of a fault. Suitable for installation where three-phase protection at this voltage and...
Vendor: Schneider Electric
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

This 3-pole circuit breaker provides overcurrent protection for three-phase circuits rated up to 690VAC and 250A. It is used to protect distribution circuits and connected equipment within control panels and switchboards, isolating the supply in the event of a fault. Suitable for installation where three-phase protection at this voltage and current rating is required.

Specifications
Specifications
x

Product Information

Product Title

LV431770 - circuit breaker Compact NSX250F, 36 kA at 415 VAC, Micrologic 2.2 trip unit 250 A, 3 poles 3d

Product Details

  • Product ID: LV431770
  • Range Name: Compact NSX <630A
  • Business Unit Name: ENM POWER PRODUCTS
  • Rated Current: 250 A
  • Number of Poles: 3 poles
  • Rated Voltage: 415 VAC
  • Short-Circuit Breaking Capacity: 36 kA
  • Trip Unit: Micrologic 2.2

Product Description

Schneider Electric India. LV431770 - circuit breaker Compact NSX250F, 36 kA at 415 VAC, Micrologic 2.2 trip unit 250 A, 3 poles 3d.

Keywords

LV431770, Compact NSX <630A
