Schneider Circuit breaker, 3-pole, 415V, 125A
Schneider Circuit breaker, 3-pole, 415V, 125A

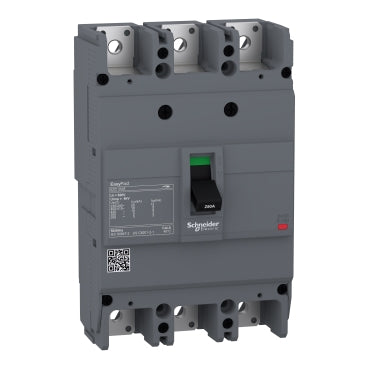

Schneider Circuit breaker, 3-pole, 415V, 125A Part number EZC250F3125

This three-pole circuit breaker supports a 125 A load with thermal-magnetic trip technology. It offers robust protection for AC and DC systems with a maximum operational voltage of 550 V AC and 250 V DC.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This three-pole circuit breaker supports a 125 A load with thermal-magnetic trip technology. It offers robust protection for AC and DC systems with a maximum operational voltage of 550 V AC and 250 V DC.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsEN/IEC 60947-1 / EN/IEC 60947-2 / GB/T 14048.2
Temperature: Operating-25°C to 70 °C
Part Depth (mm)60mm
Part Width (mm)105mm
Part Height (mm)165mm
Packaging size / unit1 pc(s) / 8 pc(s)
Max Frequency50/60 Hz
Type of VoltageDC / AC
Rated Operating Voltage250 V DC conforming to IEC 60947-2 / 550 VAC 50/60 Hz conforming to IEC 60947-2
Mounting TypeBackplate / Fixed
Current Rating / Rated Current125 A
Operating Period10000 cycles (mechanical) / Category A: 5000 cycles 415 VAC 50/60 Hz conforming to IEC 60947-2 (electrical)
Warranty18 Months
Documents
Documents
x
Download Datasheet
