Description

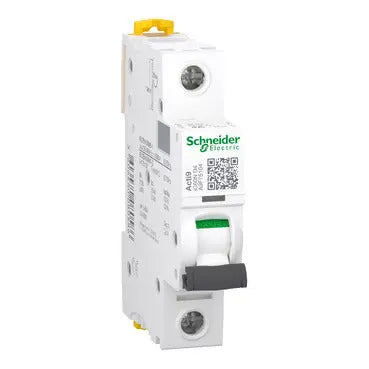

xThis Acti9 iC60N 1-pole, 4 A miniature circuit breaker with a D curve offers reliable protection in distribution circuits. It has a breaking capacity of 6000 A at 230 V AC and 50 kA at 220-240 V AC, designed for AC and DC applications.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35 °C to 70 °C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 85mm |
| Weight (g) | 215g |
| Packaging size / unit | 1 / 12 / 132 pc(s) |
| Tightening Torque | 2 Nm |
| Connection Style | 1-pole |
| Connection Type | Single terminal (top or bottom) 1-16 mm² flexible / Single terminal (top or bottom) 1-25 mm² rigid |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC / AC |
| Mounting Type | Fixed DIN rail |
| Current Rating / Rated Current | 4 A |
| Operating Period | 20000 cycles (Mechanical) / 10000 cycles (Electrical) |
| Warranty | 18 Months |
| Colour | White |
