Product Information

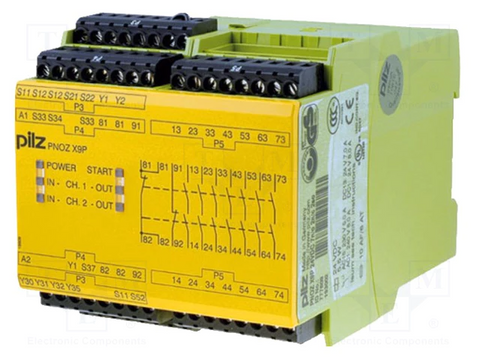

Name: Pilz Safety relay, standalone, 7NO+2NC, 24VDC
Brand: Pilz
SKU: 777609
Price: 0.01 ZAR
Availability: InStock

PNOZ X9P 24VDC 7n/o 2n/c 2so

Product ID: 777609

Description

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 7 N/O, 2 N/C, 2 SC, automatic/monitored start, UB = 24 V DC, width: 90 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light curtain.

Technical Data

Approval	CCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV
Supply Voltage (V)	24 V
Type of Supply Voltage U1	DC
Power Consumption DC	5.5 W
Number of Inputs	2
Number of Semiconductor Outputs	2
Utilisation Category to EN 60947-1	DC-12
Max. Current AC1 Safety Cont.	8 A
Max. Current DC1 Safety Cont.	8 A
Ambient Temperature	-10 to 55 °C
Humidity Rating	93 % r. h. at 40 °C
Net Weight	570 g
Gross Weight	575 g
