Description

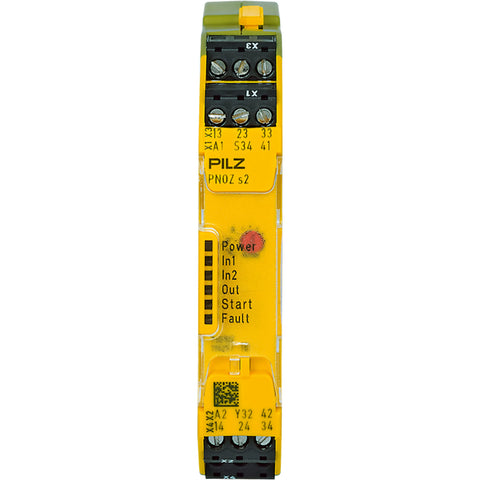

xThe Pilz PNOZsigma is a single-channel wired safety relay with 3 normally open and 1 normally closed contact configuration, designed for monitoring safety circuits in industrial machinery. It operates from a 24 V DC supply, drawing 2 W, and switches loads rated to 6 A under the DC-12 utilisation category. Housed in a compact enclosure measuring 17.5 mm wide, 98 mm high and 120 mm deep, it connects via plug-in screw terminals and is suited to DIN rail mounting within control panels.
Key specifications
- Rated current: 6 A
Specifications
x| Global Compliance / Compliance with Standards | CAS No.: 7439-92-1, 1317-36-8 / CCC / CE / cULus Listed / EAC (Eurasian) / EN 60068-2-6 / EN 60068-2-78 / EN 60947-1 / EN 60947-4-1 / EN 60947-5-1 / EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1 / KOSHA / RoHS directive: 2011/65/EU, 2015/863/EU / TÜV / UKCA / WEE |
| Material: Housing Material | AgCuNi / PC |
| Power Consumption | 2 W |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 17.5mm |
| Part Height (mm) | 98mm |
| Weight (g) | 175g |
| Connection Terminal | Plug-in screw terminal |
| Utilization Category | DC-12 |
| Supply Voltage | 24 - 24 V |
| Type of Voltage | DC |
| Voltage Range | 230 - 240 V |
| Current Rating | 6 A |
