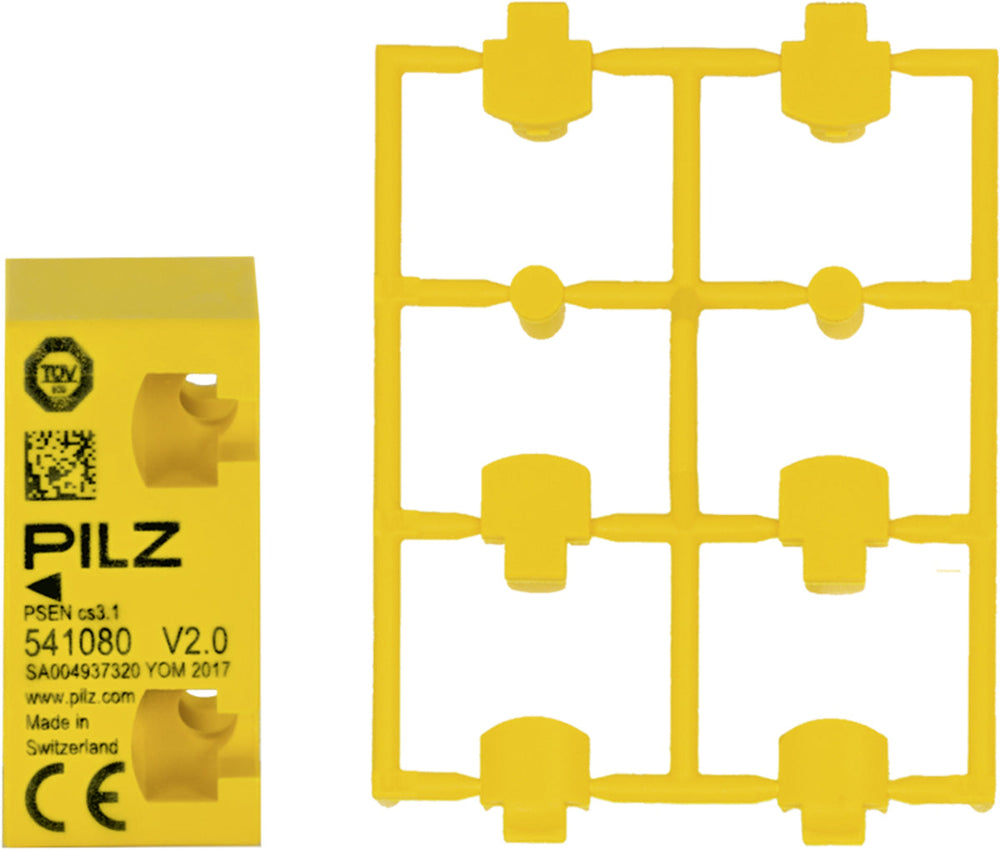

Pilz Actuator for coded safety switch, 18x37x18mm(WHD) Pilz
View on Pilz
Pilz

Pilz Actuator for coded safety switch, 18x37x18mm(WHD) Part number 541080

EAN / Barcode - None -
Product Type Safety Automation
Back Order
View Full Product Details on Pilz 💬 Ask an Expert - Technical Support Available

Product Description

This actuator is designed for use with coded safety switches, providing the mating component required for non-contact position monitoring on guards and access doors. Housed in PBT, it is compact in size, measuring 18x37x18mm (WHD), suitable for installation on machine guards and panels where space is limited.

Technical Specifications

Global Compliance / Compliance with StandardsCE / cULus Listed / EAC (Eurasian) / EN 60068-2-1/-2 / EN 60068-2-14 / EN 60068-2-78 / EN 60947-5-2 / EN 60947-5-3 / RoHS directive: 2011/65/EU, 2015/863/EU / TÜV / UKCA
Material: Housing MaterialPBT
Part Depth (mm)18mm
Part Width (mm)18mm
Part Height (mm)37mm
Weight (g)10g
View complete specifications on Pilz
