Description

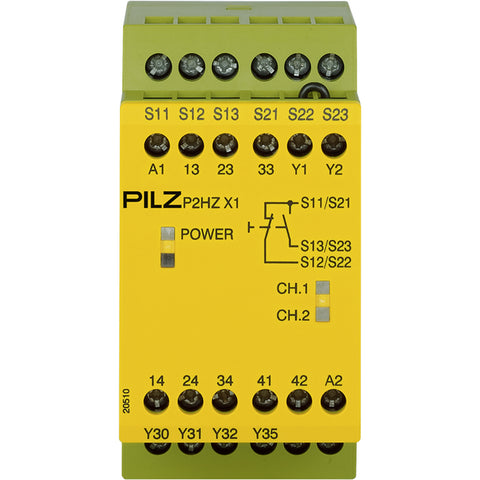

xThis safety relay is designed for single or dual channel operation and provides one auxiliary contact, operating from a 24VDC supply. It monitors safety circuits and switches outputs accordingly, with screw terminal connections for straightforward panel wiring. The unit is housed in ABS UL 94 V0 material with AgSnO2 contacts, suited to installation within industrial control panels where safety-related switching is required.
Key specifications
- Rated current: 2.5 - 5 A
Specifications
x| Global Compliance / Compliance with Standards | CCC / CE / cULus Listed / EAC (Eurasian) / EN 60068-2-6 / EN 60068-2-78 / EN 60947-1 / EN 60947-4-1 / EN 60947-5-1 / EN 61000-6-2 / TÜV / UKCA / WEE |
| Material: Housing Material | ABS UL 94 V0 / AgSnO2\r |
| Power Consumption | 2.5 W |
| Part Depth (mm) | 121mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 87mm |
| Weight (g) | 280g |
| Connection Terminal | Screw terminal |
| Utilization Category | DC-12 |
| Supply Voltage | 24 - 24 V |
| Type of Voltage | DC |
| Voltage Range | 230 V - 240 VAC G.U. (same polarity) |
| Current Rating | 2.5 - 5 A |
