Pilz Safety relay, dual channel, automatic/manual reset, 24VDC
Pilz Safety relay, dual channel, automatic/manual reset, 24VDC

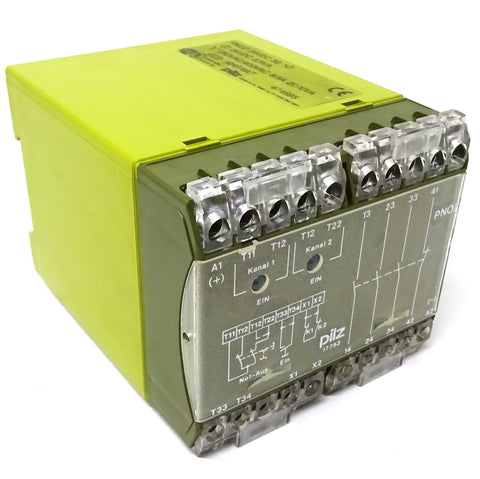

Pilz Safety relay, dual channel, automatic/manual reset, 24VDC Part number 474695

This safety relay operates from a 24 V DC supply and provides two inputs with dual-channel monitoring, supporting both automatic and manual reset operation. Safety contacts are rated up to 8 A at 24 V DC or 240 V AC, with contacts made from AgSnO2+Au, making the device suitable for...
Vendor: Pilz
Availability: In stock
Product type: Safety Automation
Please hurry! Only 2 left in stock
Description
Description
x

This safety relay operates from a 24 V DC supply and provides two inputs with dual-channel monitoring, supporting both automatic and manual reset operation. Safety contacts are rated up to 8 A at 24 V DC or 240 V AC, with contacts made from AgSnO2+Au, making the device suitable for switching loads in safety circuits such as emergency stop or guard monitoring functions. The housing is constructed from PPO UL 94 V0 material, connects via screw terminals, and can be mounted in any position, with an ambient operating range of -10 to 55°C. Approvals include CE, CCC, cULus, TÜV and EAC.

Key specifications

  • Operating temperature: -10 - 55 °C
Specifications
Specifications
x

Product Information

PNOZ 24 V DC 3N/O 1N/C **USE 775695**

Product ID: 474695

This product is no longer available. For more information on successor products or replacement parts, please contact Technical Support.

Technical Data

Approval CE, CCC, cULus Listed, TÜV, EAC (Eurasian)
Supply Voltage (V) 24 V
Type of Supply Voltage U1 DC
Power Consumption DC 3.5 W
Number of Inputs 2
Utilisation Cat. AC/DC1 Stand. EN 60947-4-1
Voltage AC1 Safety Cont. 240 V
Max. Current AC1 Safety Cont. 8 A
Voltage DC1 Safety Cont. 24 V
Max. Current DC1 Safety Cont. 8 A
Utilisation Cat. AC15/DC13 Sta. EN 60947-5-1
Voltage AC15 Safety Cont. 230 V
Max. Current AC15 Safety Cont. 5 A
Voltage DC13 Safety Cont. 24 V
Relay Contact Material AgSnO2+Au

Environmental Data

Climatic Suitability EN 60068-2-78
Ambient Temperature -10 - 55 °C
Humidity Rating 93 % r. h. at 40 °C
Condensation Permitted? Not permitted
EMC to Standard EN 50081-2, EN 50081-1
Vibration to Standard EN 60068-2-6
Clearance & Creepage Dist. to VDE 0110-1

Mechanical Data

Mounting Position Any
Housing Material Lower Section PPO UL 94 V0
Housing Material Upper Part PPO UL 94 V0
Connection Terminal Screw terminal
Height Dimension 75 mm
Width Dimension 90 mm
Depth Dimension 110 mm
Net Weight 410 g
Gross Weight 440 g
