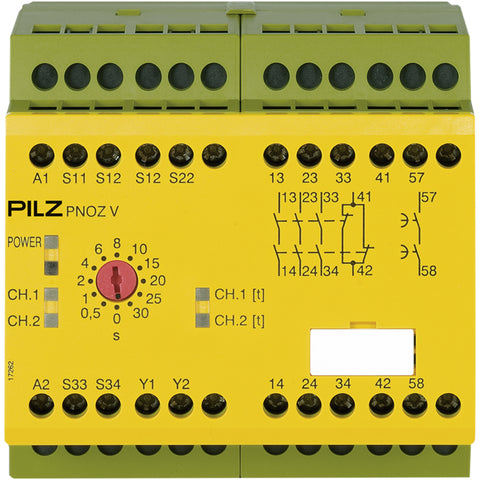

Pilz Safety relay, automatic/manual start, 3NO+1NC
Pilz Safety relay, automatic/manual start, 3NO+1NC

Pilz Safety relay, automatic/manual start, 3NO+1NC

This safety relay features 3 N/O, 1 N/C, and 1 N/O timed delay contact, with a delay time adjustable between 0.05 and 30 seconds. It operates on 24 V DC and is suitable for E-STOP monitoring and safety gate applications.
Vendor: Pilz
SKU: 774790
Availability: In stock
Product type: Safety Automation
Please hurry! Only 1 left in stock
Description
Description
x

This safety relay features 3 N/O, 1 N/C, and 1 N/O timed delay contact, with a delay time adjustable between 0.05 and 30 seconds. It operates on 24 V DC and is suitable for E-STOP monitoring and safety gate applications.

Specifications
Specifications
x
Global Compliance / Compliance with StandardsCE / CCC / cULus Listed / EAC (Eurasian) / EN 60068-2-6 / EN 60068-2-78 / EN 61000-6-2 / EN 61326-3-1 / EN 60947-1 / EN 60947-4-1 / EN 60947-5-1 / KOSHA / TÃœV / UKCA
Material: Housing MaterialABS UL 94 V0
Part Depth (mm)121mm
Part Width (mm)90mm
Part Height (mm)87mm
Weight (g)475g
Connection TerminalScrew terminal
Supply Voltage24 V
Type of VoltageDC
Documents
Documents
x
Download Datasheet
