Product Information

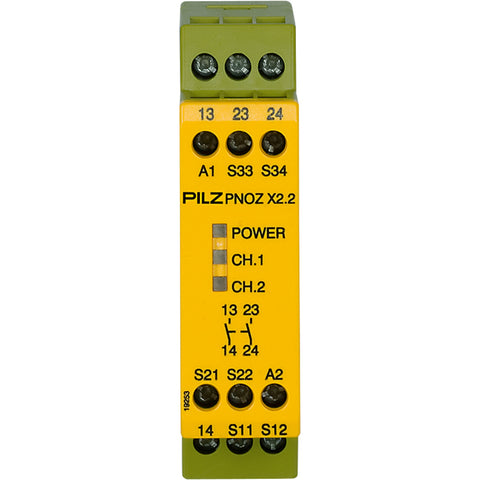

Name: Pilz Safety relay, 1/2-channel wiring, 2NO, 24VAC/DC
Brand: Pilz
SKU: 774607
Price: 0.01 ZAR
Availability: InStock

PNOZ X2.2 24VAC/DC 2n/o

Product ID: 774607

Description

Safety relay (standalone), inputs: 1/2-channel wiring with detection of shorts across contacts, outputs: 2 N/O, automatic/monitored start, UB = 24 V AC/DC, width: 22.5 mm, screw terminals integrated, monitoring of E-STOP, safety gates.

Technical Data

Approval	CCC, CE, UKCA, cULus Listed, TÜV, EAC (Eurasian)
Supply Voltage (V)	24 V
Type of Supply Voltage U1	AC/DC
Power Consumption AC	4.5 VA
Power Consumption DC	2 W
Number of Inputs	2
Number of Semiconductor Outputs	0
Utilisation Category AC/DC1 Stand.	EN 60947-4-1
Max. Current AC1 Safety Cont.	6 A
Max. Current DC1 Safety Cont.	6 A
Ambient Temperature	-10 to 55 °C
Humidity Rating	93 % r. h. at 40 °C
Net Weight	195 g
Gross Weight	205 g
