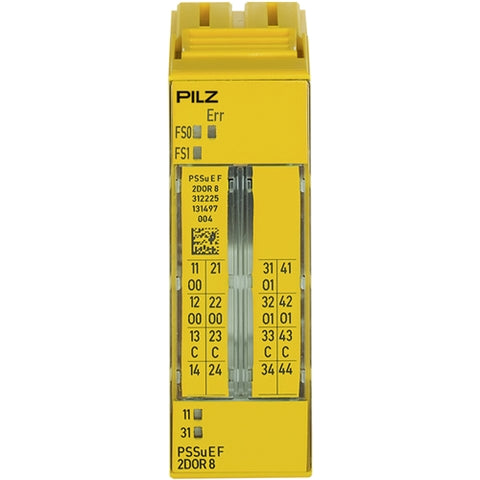

Pilz PSSu Electronic module, 2 outputs, 8A, N/O Part number 312225

This electronic module forms part of the Pilz PSSu automation system and provides two normally-open safety outputs for failsafe applications. It switches loads up to 8 A at 250 V AC1 or 8 A at 24 V DC1, allowing it to control safety-related actuators such as contactors or valves within...
Vendor: Pilz
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This electronic module forms part of the Pilz PSSu automation system and provides two normally-open safety outputs for failsafe applications. It switches loads up to 8 A at 250 V AC1 or 8 A at 24 V DC1, allowing it to control safety-related actuators such as contactors or valves within a machine or plant safety circuit. Designed for panel installation, it operates across an ambient temperature range of 0 to 60 °C and carries CE, UKCA, cULus, KOSHA, TÜV and EAC approvals.

Key specifications

  • Operating temperature: 0 to 60 °C
Specifications
Specifications
x
Approval CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Application range Failsafe
Number of relay outputs 2
Max. current AC1 safety contact 8 A
Max. current DC1 safety contact 8 A
Voltage AC1 safety contact 250 V
Voltage DC1 safety contact 24 V
Ambient temperature 0 to 60 °C
Net weight 90 g
Gross weight 99 g
Climatic suitability EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Humidity rating 93 % r. h. at 40 °C
ECLASS version ECLASS-13
GTIN 4046548018585
Volume 0.146 dm3
Documents
Documents
x
Download Datasheet
