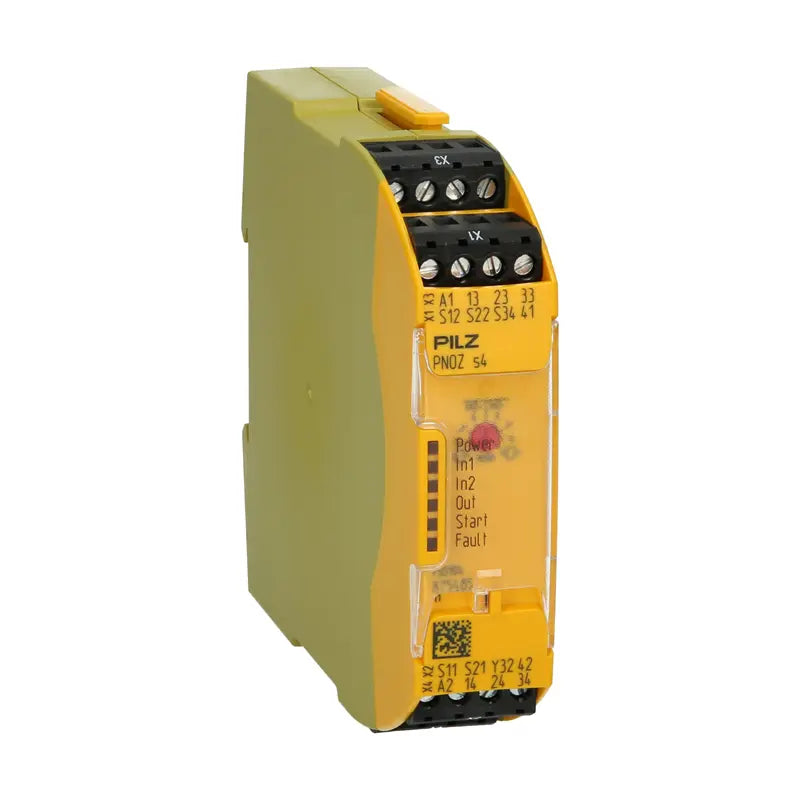

Pilz PNOZsigma Safety relay, 1/2-channel wiring, 3NO+1NC
Pilz PNOZsigma Safety relay, 1/2-channel wiring, 3NO+1NC

Pilz PNOZsigma Safety relay, 1/2-channel wiring, 3NO+1NC

Vendor: Pilz
SKU: 750104
Availability: In stock
Product type: Safety Automation
Please hurry! Only 3 left in stock
Ask an expert
Description
Description
x
Specifications
Specifications
x

Product Information

PNOZ s4 24VDC 3 n/o 1 n/c

Product ID: 750104

Description

PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic start, outputs: 3 N/O, 1 N/C, 1 SC, UB 24 V DC, width: 22.5 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light guard.

Technical Data

Approval CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
Supply Voltage (V) 24 V DC
Power Consumption DC 2.5 W
Number of Inputs 2
Number of Semiconductor Outputs 1
Utilisation Category to EN 60947-1 DC-12
Utilisation Category AC/DC1 Standard EN 60947-4-1
Max Current AC1 Safety Cont. 6 A
Ambient Temperature -10 to 55 °C
Humidity Rating 93 % r. h. at 40 °C
Net Weight 185 g
Gross Weight 195 g

Environmental Data

RoHS Directive 2011/65/EU, 2015/863/EU
RoHS Conformity Yes
REACh Compliance Contains min. 1 SVHC-substance

Commercial Data

ECLASS Version ECLASS-13
GTIN 4046548025675
Harmonized System Code 85364900

Downloads

Documents
Documents
x
Download Datasheet
