Product Information

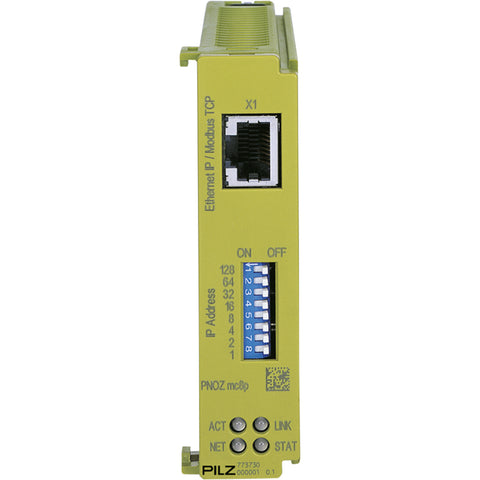

Name: Pilz PNOZmulti Classic, communication module, female 9-pin
Brand: Pilz
SKU: 773730
Price: 0.01 ZAR
Availability: InStock

PNOZ mc8p Ethernet IP / Modbus TCP

Product ID: 773730

Description

PNOZmulti Classic, communication module, standard, fieldbus EtherNet/IP, Modbus/TCP, configuration with web server, IP addresses 1 - 255, 8 DIP switch, 1 RJ45 port, transmission rates 100 MBit/s, 24/128 Bit virtual inputs, 24/128 Bit virtual outputs.

Note: This product is no longer available. For more information on successor products or replacement parts, please contact Technical Support.

Technical Data

Approval	CCC, CE, cULus Listed, KCC, KOSHA, TÜV, EAC (Eurasian)
Fieldbus Interface	EtherNet/IP (TM), Modbus/TCP
Fieldbus Device Type	Slave
Selectable Transmission Rates	10 MBit/s, 100 MBit/s
Connection Fieldbus	RJ45
Galv. Isolation Fieldbus	Yes
Test Voltage	500 V AC
Ambient Temperature	0 - 60 °C
Storage Temperature	-20 - 70 °C
Humidity Rating	93 % r. h. at 40 °C
Protection Type	IP20

Mechanical Data

Mounting Position	Horizontal on top hat rail
Height	94 mm
Width	22.5 mm
Depth	114 mm
Net Weight	137 g
Gross Weight	155 g

Environmental Data

RoHS Directive	2011/65/EU, 2015/863/EU
RoHS Conformity	Yes
REACh Compliance	Contains no SVHC substances
WEEE Classification	5 devices (feed size < 50cm)
