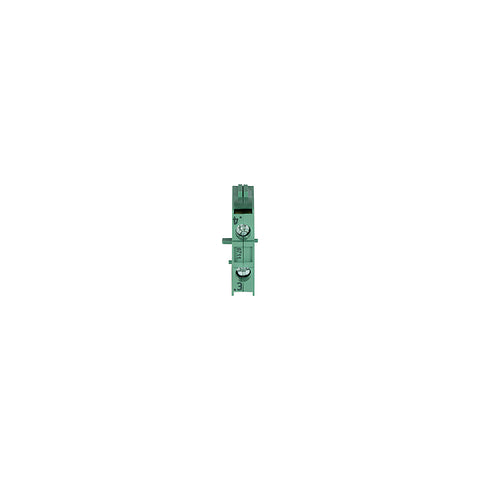

PIT esc3 contact block 1 n/o

Product ID: 400310

Description: PITestop, contact block, 1 N/O, terminal (screw type).

Product Details

• Approval: CSA, UL Listed, EAC (Eurasian), TÜV
• Self-monitored: No
• Min. contact current: 1 mA
• Switch capacity E-STOP to standard: EN 60947-5-1
• Contact material E-STOP: AgNi
• Ambient temperature: -30 to 85 °C
• Pollution degree: 3
• Connection terminal: Screw terminal
• Net weight: 11 g
• Gross weight: 13 g

Environmental Data

• RoHS directive: 2011/65/EU, 2015/863/EU
• RoHS conformity: Yes
• RoHS exceptions: No
• REACh compliance: Contains no SVHC substances
• WEEE classification (08/2018): 5 devices (feed size < 50cm)

Commercial Data

• ECLASS version: ECLASS-13
• ECLASS Reference Feature: 27371302
• ETIM Version: ETIM-9.0
• ETIM Reference Group: EG000017
• ETIM Reference Feature: EC000041
• UNSPSC 25: 39122216
• GTIN: 4046548043600
• Volume: 0 dm3
• Harmonized System Code: 85365080
• Type of tariff number: TARIC
• Use of customs tariff number: Ausfuhr, Einfuhr
• Quantity per packaging unit: 1

Downloads

• CAD 2D drawing (PDF) - File Size: 0.1 MB, Date: 29.11.2012
• CAD 2D drawing (DXF) - File Size: 0.1 MB, Date: 29.11.2012
• CAD 3D model (IGES) - File Size: 1.4 MB, Date: 29.11.2012
• CAD 3D model (STEP) - File Size: 0.3 MB, Date: 29.11.2012
• Certificate (CSA) 227674 - File Size: 0.1 MB, Date: 08.09.2017
• Certificate (EAC) - File Size: 0.0 MB, Date: 22.03.2018
• Certificate (UL) - File Size: 0.0 MB, Date: 22.03.2018
• EU/EC-Declaration of Conformity - File Size: 0.1 MB, Date: 02.08.2023
• Operating Manual PITestop - File Size: 1.5 MB, Date: 10.10.2023
• Operating Manual PIT es Set/1 - File Size: 1.0 MB, Date: 17.07.2019
