Product Information

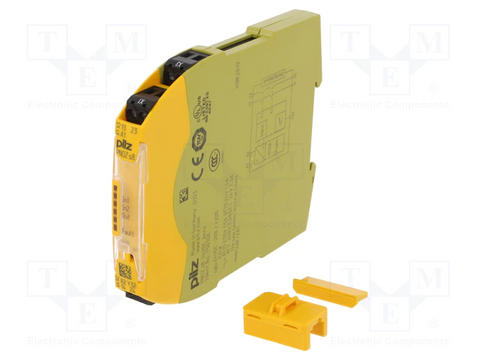

Name: Pilz Contact expansion module, 2NO, 24VDC
Brand: Pilz
SKU: 750108
Price: 0.01 ZAR
Availability: InStock

PNOZ s8 24VDC 2 n/o

Product ID: 750108

Description: PNOZsigma contact expansion, outputs: 2 N/O, 1 SC, UB 24 V DC, width 12.5 mm, plug-in screw terminals, contact block for contact expansion in connection with safety-related control components.

Technical Data

Approval	CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
Supply Voltage (V)	24 V
Type of Supply Voltage U1	DC
Power Consumption DC	2 W
Number of Inputs	1
Number of Semiconductor Outputs	1
Utilisation Category to EN 60947-1	DC-12
Utilisation Category AC/DC1 Standard	EN 60947-4-1
Max Current AC1 Safety Cont.	3 A
Max Current DC1 Safety Cont.	3 A
Ambient Temperature	-10 to 55 °C
Humidity Rating	93 % r. h. at 40 °C
Net Weight	105 g
Gross Weight	115 g
