Product Information

Name: Pilz Adapter for connecting the sensor, 3 conductors, 4A
Brand: Pilz
SKU: 380323
Price: 0.01 ZAR
Availability: InStock

Product Name

PSEN op2/4 M12 Receiver ad

Product ID

380323

Product Description

Cable, adapter, IP68, M12 female connector, black, straight, 4-pin, A-coded on M12 male connector, black, straight, 5-pin, A-coded, PUR, 0.1 m, 3× 0.34 mm², black, to connect a receiver from the sensors PSEN op2S-1-1/PSEN op4S-1-1/PSEN op4S-1-2 (light barriers) to PSS67 and PDP67.

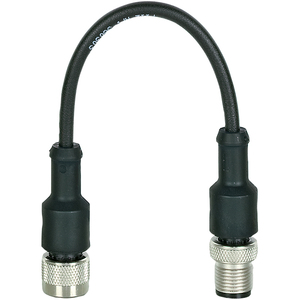

Images

Actual product may vary

Technical Data

General Data

Approval

CE, UKCA

Electrical Data

Rated current	4 A
Typical conductor resistance K1	55 Ohm/km
Specific contact resistance K1	>= 1E+14 Ohm*cm

Environmental Data

Ambient temperature	-5 to 70 °C
Pollution degree clear.&creep.	3

Mechanical Data

Connector type 1	4-pin M12 female connector
Shape of connector type 1	Straight
Coding of M12 connector 1	A coded
Connector type 2	5-pin M12 male connector
Shape of connector type 2	Straight
Coding of M12 connector 2	A coded
Contact surfaces material 1	Au
Contact surfaces material 2	Au
Material of pins	CuZn
Material of sockets	CuSn
Cable material K1	Cu
Insulation material cable K1	PVC
Length cable	0.1 m
Colour cable insulation 1	Black
Housing colour	Black
Material of cable insulation 1	PUR
Net weight	24 g
Gross weight	39 g
