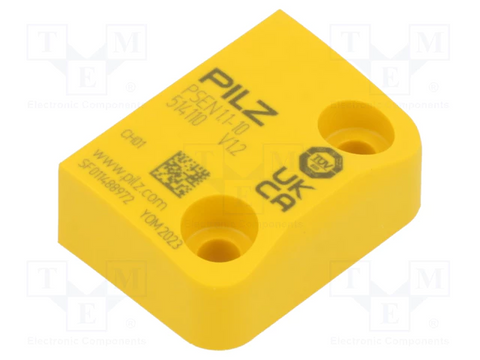

Name: Pilz Actuator for magnetic safety switch, square, (H)13mm
Brand: Pilz
SKU: 514110

Pilz Actuator for magnetic safety switch, square, (H)13mm

This actuator is designed for use with magnetic safety switches, providing the target element that triggers switching when brought into range of the sensor. Its square housing measures 36 x 26 x 13mm and is constructed with a PBT upper part, giving a compact, lightweight component suitable for mounting on...

Vendor: Pilz

Availability: In stock

Product type: Safety Automation

Please hurry! Only 2 left in stock

Description
Specifications
Documents
Alternatives

Quantity	Available at
0 pcs	Apr 10, 2025
Approval	CE / UKCA / cULus Listed / EAC (Eurasian) / TÜV
Unit Type	Actuator
ATEX Category	II 3GD EEx nC IIC T6
Ambient Temperature	-25 to 70 °C
Max. Ambient Temp. at Hmax
Max. Ambient Temp. at 2000 m	+70 °C
Perm. Operating Height ASL	4000 m
Vibration to Standard	EN 60947-5-2
Acc. Shock to Standard	30g
Pollution Degree Clear & Creep	3
Protection Type, Housing
Housing Material Upper Part	PBT
Height Dimension	36 mm
Width Dimension	26 mm
Depth Dimension	13 mm
Net Weight	15 g
Gross Weight	16 g
RoHS Directive	2011/65/EU, 2015/863/EU
RoHS Conformity	Yes
REACh Compliance	Contains no SVHC substances
WEEE Classification	5 devices (feed size < 50cm)
ECLASS Version	ECLASS-13
ECLASS Reference Feature	27274002
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC001487
GTIN	4046548003390
Volume	0 dm3
Quantity per Packaging Unit	1
