Murr M12 Adaptor on top of MSUD valve plug, 3-pole

Product Overview

This M12 to MSUD valve plug adapter (SKU: 7000-41301-0000000) features a male M12 top-entry connector converting to an MSUD valve plug Form A (18mm) for reliable connection to solenoid valves in industrial automation applications. The 3-pole adapter includes integrated LED status indication and suppression circuitry for 24V AC/DC valve control applications.

Connector Configuration:

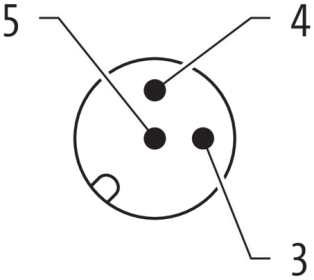

• Input: M12, 3-pole, top entry, A-coded (male)
• Output: MSUD valve plug Form A, 18mm diameter
• Voltage Rating: 24V AC ±20% / DC ±25%
• Protection: IP67 when mated
• Housing: Impact-resistant plastic

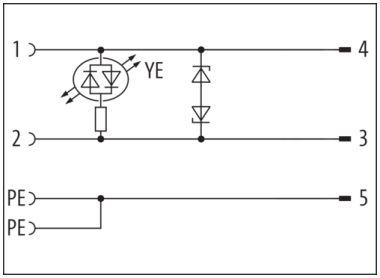

• LED Indicators: Status indication with suppression

Valve Adapter Design:

• Configuration: M12 male to MSUD valve plug conversion
• Topology: Top-entry M12 connection to standard valve interface
• Signal conversion: M12 sensor/control signals to valve actuation
• Installation: Direct mounting on valve solenoids
• LED Status: Visual indication of valve state and power

Electrical Characteristics:

• Operating voltage: 24V AC ±20% / DC ±25%
• Current rating: Suitable for valve solenoid applications
• LED function: Integrated status indication
• Suppression: Built-in voltage suppression circuitry
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Suitable for industrial valve applications

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Valve interface: MSUD Form A (18mm) standard
• Material compliance: RoHS compliant

Applications

Designed for industrial automation valve control applications requiring M12 connectivity. Ideal for converting M12 control signals to standard MSUD valve plug connections for pneumatic and hydraulic solenoid valves. Perfect for process control systems, manufacturing automation, and fluid control applications where reliable valve actuation with status indication is required.

Download existing graphical data for this product:

Product Datasheet
