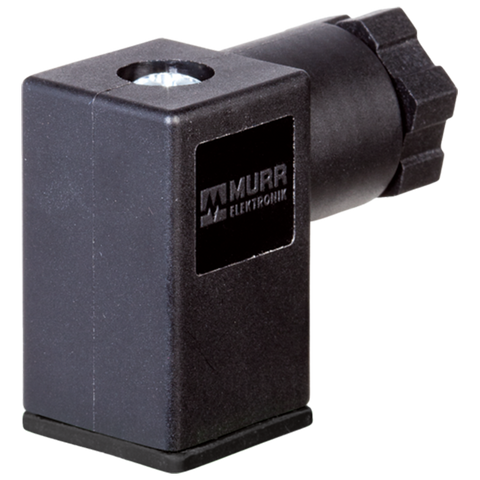

Murr Eco valve plug, form C, field-wireable, 2+PE, M16x1.5

Product Overview The Murrelektronik SVS-Eco valve plug is a field-wireable connector designed for industrial valve and solenoid connectivity applications. This Form C (8mm) valve plug features screw terminal connections for direct field wiring to control systems. Rated for 250V AC/DC applications with 2+PE contact configuration, it provides reliable valve control in demanding industrial automation environments through its compact sub-micro design.

Key Features

• SVS-Eco Form C (8mm) valve connector design
• Field-wireable construction with screw terminal connections
• 2+PE contact configuration for standard valve applications
• M2.5 internal locking mechanism for secure connections
• 8mm socket depth for compact installation requirements
• M12x1.5 thread for standard industrial connections
• Maximum 6A per contact current capacity
• Plastic housing construction for durability
• Early detection of connection loosening through locking mechanism

Technical Specifications

• Article Number: 7000-30055-0000000

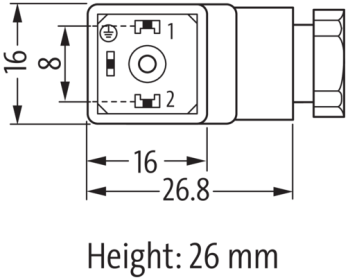

• Connector Type: SVS-Eco Form C (8mm)

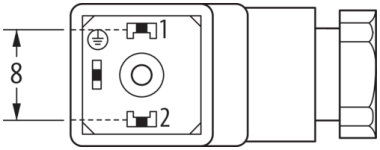

• Socket Depth: 8mm

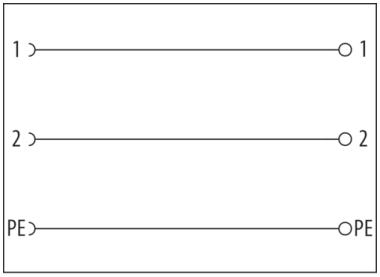

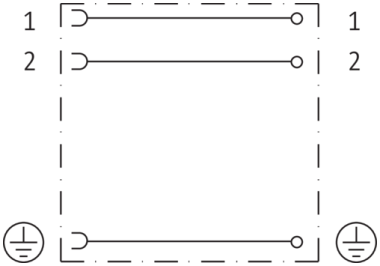

• Contact Configuration: 2 + PE
• Voltage Rating: 250V AC/DC
• Current Rating: Maximum 6A per contact
• Thread: M12 x 1.5
• Socket Locking: M2.5
• Connection Method: Screw terminal, field-wireable
• Housing Material: Plastic
• Configuration: Without components (no LED or suppression)
• Connection Cross Section: Maximum 0.5mm²
• Clamping Range: 4-6mm
• Operating Temperature: -40°C to +90°C
• Degree of Protection: IP65 (when inserted and screwed)
• Tightening Torque: 0.4 Nm (±0.1 Nm tolerance)
• Weight: 0.013 kg
• Country of Origin: Hungary
• EAN: 4048879187015

Applications

• Industrial valve and solenoid control systems
• Hydraulic system automation requiring compact connections
• Pneumatic actuator control in space-constrained applications
• Electromagnetic valve control systems
• Process automation valve applications
• Factory automation systems requiring reliable connections
• Custom valve control applications with field wiring requirements

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Industrial Standards: Designed for industrial automation environments
• Connection Standards: Standard M16x1.5 threading
• Safety Standards: PE connection for protective earthing
• Protection Standards: Industrial-grade environmental protection

Benefits

• Field-wireable design eliminates need for pre-assembled cordsets
• Compact Form C (8mm) design saves installation space
• Screw terminal connections provide secure field termination
• Internal locking mechanism prevents accidental disconnection
• High current capacity supports demanding valve applications
• Standard threading ensures compatibility with existing systems
• Early warning system for connection integrity monitoring
