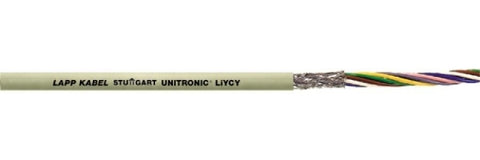

Lapp UNITRONIC LiYCY Data, signal+control cable, 10Cx0.34mm²
Lapp UNITRONIC LiYCY Data, signal+control cable, 10Cx0.34mm²

Lapp UNITRONIC LiYCY Data, signal+control cable, 10Cx0.34mm²

This screened data transmission cable is specifically designed for low-frequency applications, making it suitable for data communication systems in industrial environments. It features a PVC outer sheath and finely stranded copper conductors, ensuring excellent flexibility and reliability. The cable provides effective shielding to minimize electrical interference and is built to...
Vendor: Lapp Kabel
SKU: 0034510
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 2 left in stock
Description
Description
x
This screened data transmission cable is specifically designed for low-frequency applications, making it suitable for data communication systems in industrial environments. It features a PVC outer sheath and finely stranded copper conductors, ensuring excellent flexibility and reliability. The cable provides effective shielding to minimize electrical interference and is built to withstand extensive bending cycles, supporting long-term performance in dynamic applications. It is compliant with various standards for safety and reliability.
Specifications
Specifications
x
Compliance / CertificationsBased on VDE 0812
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Temperature: Operating-5°C to 70°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter
Diameter: External conduit size (mm)8.3mm
Weight 105000g
Peak Operating Voltage at 0.14 mm²: 350 V / at ≥ 0.25 mm²: 500 V
ColourPebble Grey
RAL CodeRAL 7032
Documents
Documents
x
Download Datasheet
