Product Information

ÖLFLEX CLASSIC 115 CY 7G1

Product Description

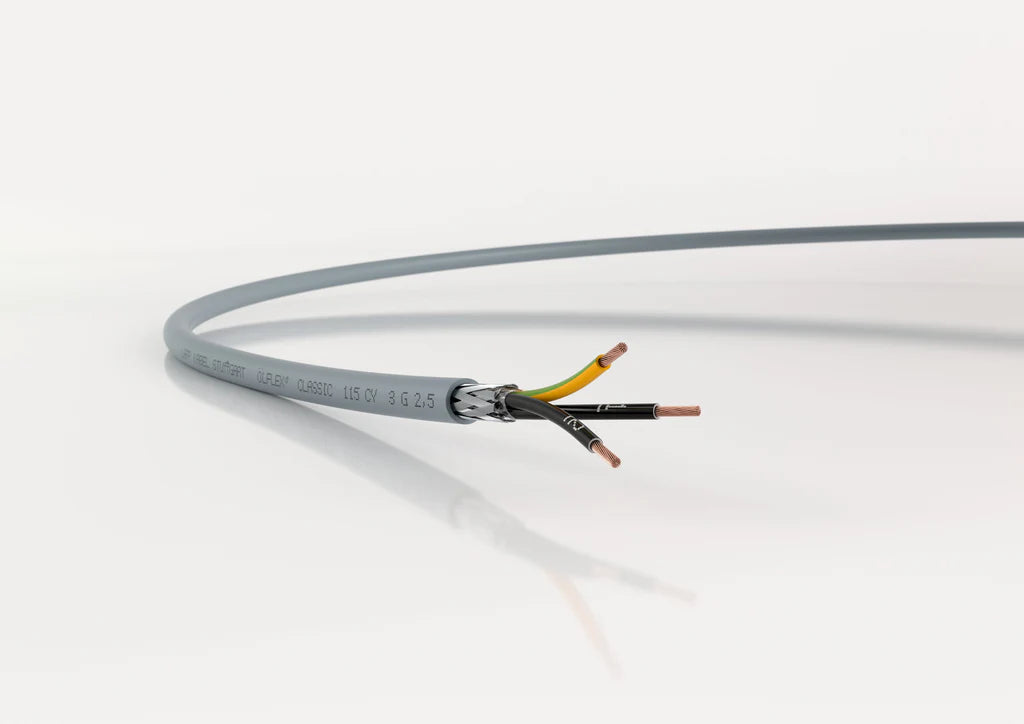

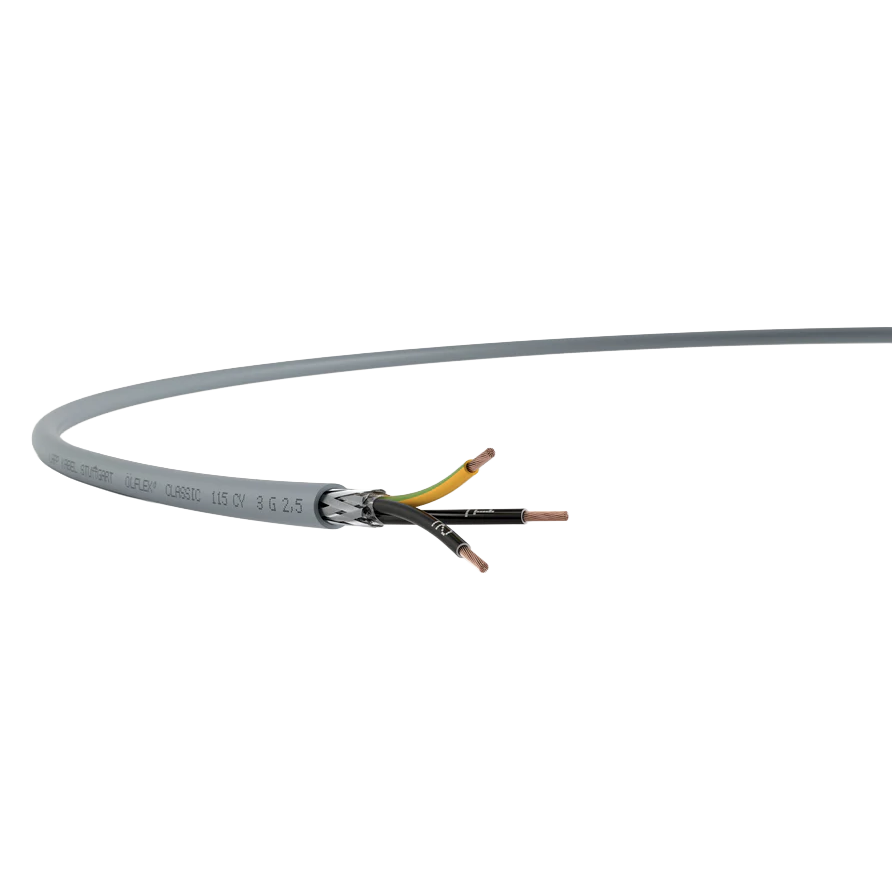

ÖLFLEX® PVC control cable, screened, flexible, numbered, small outer diameter. This cable is suitable for various applications, thin and light without inner sheath, U0/U: 300/500V.

Benefits

• Space-saving installation due to small cable diameters

Application Range

• Measurement and control technology
• Plant engineering
• Industrial machinery
• Heating and air-conditioning systems
• Office machines and systems for data processing
• In EMC-sensitive environments (electromagnetic compatibility)
• Suitable for torsional applications typical for the loop in wind turbine generators (WTG)

Product Features

• Flame-retardant according to IEC 60332-1-2
• Good chemical resistance
• High degree of screening, low transfer impedance (max. 250 Ω/km at 30 MHz)

Norm References / Approvals

Based on EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Plastic foil wrapping
• Tinned-copper braiding
• PVC outer sheath, grey (similar RAL 7001)
• Cores twisted in layers

Technical Data

• Article number: 1136207
• Number of cores and mm² per conductor: 7 G1.0
• Outer diameter [mm]: 8.8
• Copper index (kg/km): 112
• Weight (kg/km): 147
