Description

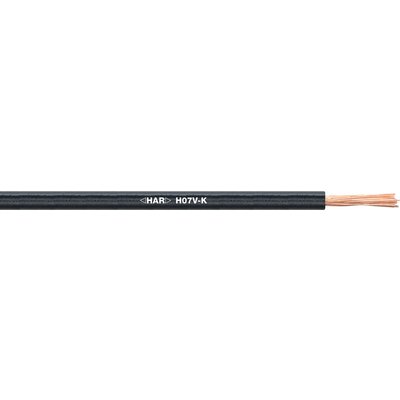

xThis single-core PVC cable is designed for use in control cabinets and for wiring devices. Rated at 450/750V, it provides flame resistance, flexibility, and meets European standards for safe, efficient fixed installations in electrical systems.
Specifications
x| Compliance / Certifications | EN 50525-1 / EN 50525-2-31 / |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | According to EN 50565-1 OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD** |
| Diameter (mm) | 6.7mm ... 8.1mm |
| Weight | 187000g |
| Test Voltage | 2500 V |
| Current Rating | VDE 0298 Part 4 EN 50565-1 / VDE 0298-565-1 |
| Colour | Blue (Core Colour) |
