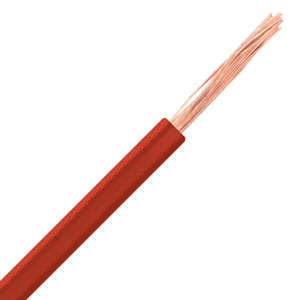

Lapp H07V-K Power/control cable, red, 16mm² Lapp Kabel
Lapp H07V-K Power/control cable, red, 16mm² Lapp Kabel

Lapp H07V-K Power/control cable, red, 16mm²

The H07V-K cable from Lapp Kabel is a flame-retardant power and control cable, rated for 450/750V, ideal for control cabinets and fixed installation in tubes. It provides high flexibility and is certified to European standards for safe, reliable wiring.
Vendor: Lapp Kabel
SKU: 4520046
Availability: In stock (Purchase on demand)
Product type: Cable & Cable Management
Please hurry! Only 53 left in stock
Description
Description
x
The H07V-K cable from Lapp Kabel is a flame-retardant power and control cable, rated for 450/750V, ideal for control cabinets and fixed installation in tubes. It provides high flexibility and is certified to European standards for safe, reliable wiring.
Specifications
Specifications
x
Compliance / Certifications cable type certification acc. EN 50525-2-31 / No cable type certified core insulation colours according to EN 50525-1/ VDE 0285-525-1: transparent, green (single colour), yellow (single colour), all double colours (except of green-yellow and yellow-green)
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Bending RadiusAccording to EN 50565-1 OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD**
Weight 187000g
Test Voltage2500 V
Current RatingVDE 0298 Part 4 EN 50565-1 / VDE 0298-565-1
ColourRed (Core Colour)
Documents
Documents
x
Download Datasheet
