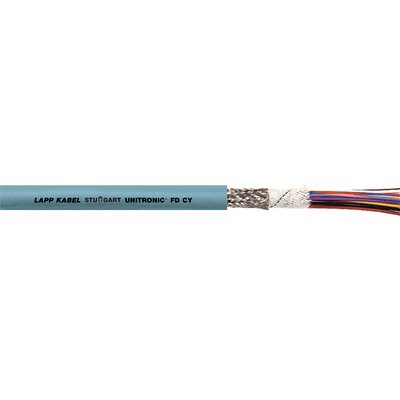

Lapp Unitronic FD CY Data transmission cable, 4 x 0.34mm²
Lapp Unitronic FD CY Data transmission cable, 4 x 0.34mm²

Lapp Unitronic FD CY Data transmission cable, 4 x 0.34mm²

This highly flexible, screened PVC data cable is designed for power chain use. It resists electrical interference and supports up to 8 million bending cycles, ideal for automated production processes requiring precise data transmission and durability.
Vendor: Lapp Kabel
SKU: 0027442
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This highly flexible, screened PVC data cable is designed for power chain use. It resists electrical interference and supports up to 8 million bending cycles, ideal for automated production processes requiring precise data transmission and durability.
Specifications
Specifications
x
Compliance / CertificationsBased on VDE 0812 For travel distances up to 10 m For use in power chains: Please comply with assembly guideline Appendix T3
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Temperature: Operating-5°C to 70°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusFlexing: 7.5 x outer diameter Fixed installation: 4 x Outer diameter
Diameter: External conduit size (mm)6mm
Weight 76000g
ColourGrey
RAL CodeRAL 7001
Documents
Documents
x
Download Datasheet
