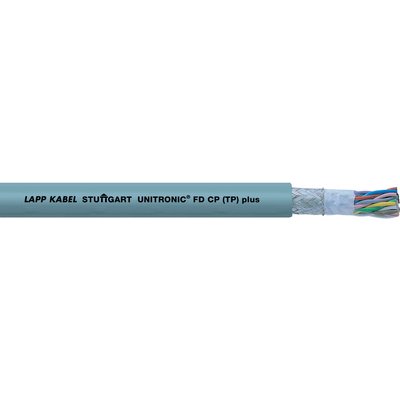

Lapp Unitronic FD CP (TP) plus A Data cable, 6x2x0.25mm²
Lapp Unitronic FD CP (TP) plus A Data cable, 6x2x0.25mm²

Lapp Unitronic FD CP (TP) plus A Data cable, 6x2x0.25mm²

This highly flexible, shielded data cable is designed for power chain applications. It is low-capacitive, halogen-free, and suitable for harsh environments, offering torsion resistance and UV protection, ideal for use in automation and wind turbines.
Vendor: Lapp Kabel
SKU: 11139512
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This highly flexible, shielded data cable is designed for power chain applications. It is low-capacitive, halogen-free, and suitable for harsh environments, offering torsion resistance and UV protection, ideal for use in automation and wind turbines.
Specifications
Specifications
x
Compliance / CertificationsAWM A/B I/II / cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576
Country of OriginGermany
FlammabilityFlame retardance: IEC 60332-1-2, FT2
Temperature: Operating-40°C to 80°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPolyolefin
Material: Jacket / Outer SheathPUR
Bending RadiusFlexing: 7.5 x outer diameter Fixed installation: 4 x outer diameter
Diameter: External conduit size (mm)8.8mm
Weight 114000g
Test VoltageCore/Core: 1500 V / Core/Shield: 1500 V
ColourGrey
RAL CodeRAL 7001
Documents
Documents
x
Download Datasheet
