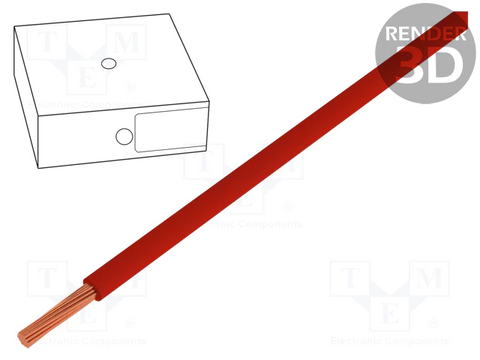

Lapp H07V-K Power/control cable, red, 10mm²
Lapp H07V-K Power/control cable, red, 10mm²

Lapp H07V-K Power/control cable, red, 10mm²

This H07V-K harmonized cable is designed for internal wiring and control cabinet installations. It has a fine-wire copper conductor with PVC insulation, providing flexibility and a voltage rating of 450/750 V, suitable for European markets.
Vendor: Lapp Kabel
SKU: 4520045
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 90 left in stock
Description
Description
x
This H07V-K harmonized cable is designed for internal wiring and control cabinet installations. It has a fine-wire copper conductor with PVC insulation, providing flexibility and a voltage rating of 450/750 V, suitable for European markets.
Specifications
Specifications
x
Compliance / CertificationsIEC 60332-1-2 / EN 50525-2-31
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Temperature: Operating-40°C to 80°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Bending RadiusAccording to EN 50565-1 OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD**
Test Voltage2500 V
Current RatingVDE 0298 Part 4 EN 50565-1 / VDE 0298-565-1
Documents
Documents
x
Download Datasheet
