Harting Cable to cable housing, double locking, top entry, 1× M25, 10B

Product Overview

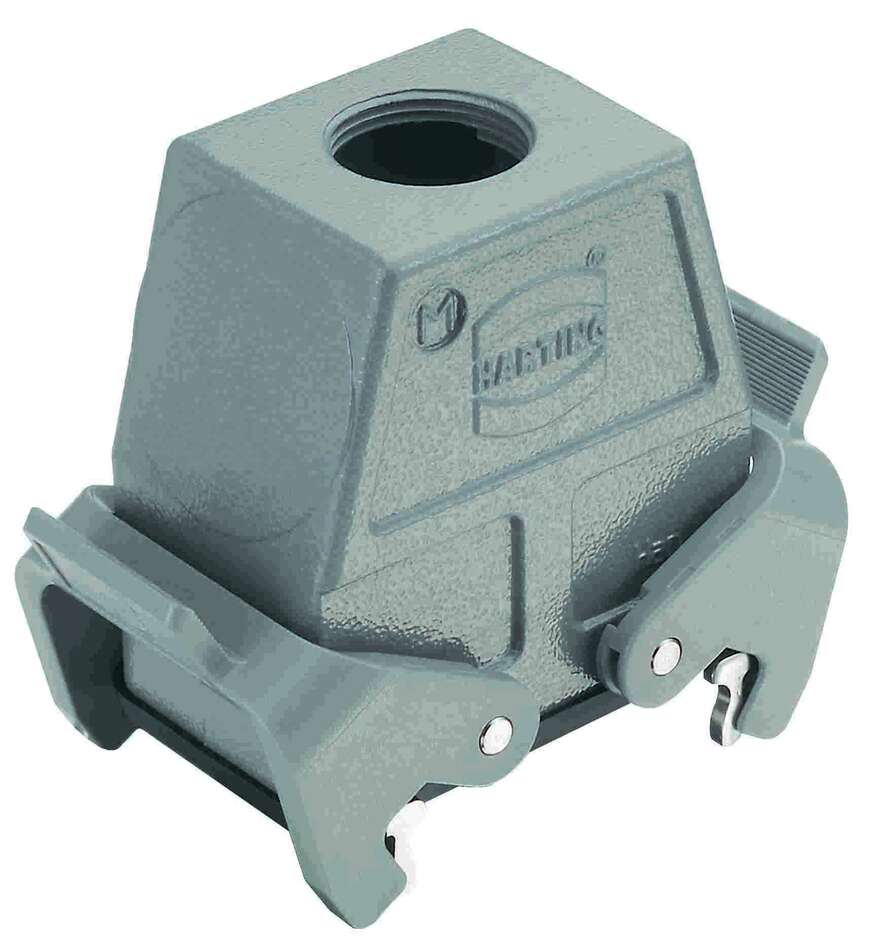

The Han 10B-kg-QB-M25 is a connector hood for industrial applications requiring rapid connection with guided cable management. Features aluminum die-cast construction with integrated cable guide system and quick bayonet locking mechanism for fast, secure connections with enhanced cable routing control in demanding environments.

Key Features

• Integrated cable guide (kg) system for enhanced cable management
• Quick bayonet (QB) locking mechanism for rapid connection
• Size 10B with M25 cable entry for large cables
• Aluminum die-cast construction, RAL 7037 finish
• Fast engagement and disengagement capability
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Cable Entry: M25 with integrated cable guide
• Locking System: Quick bayonet (QB) mechanism
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Cable Management: Integrated guide system
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Quick bayonet system enables rapid connection/disconnection
• Integrated cable guide improves cable routing and strain relief
• M25 cable entry accommodates large cable diameters
• Compatible with Han 10B series bases and inserts

Applications

• Applications requiring frequent connection/disconnection
• Systems where quick assembly and maintenance are essential
• Equipment needing guided cable management with rapid access
• Industrial environments requiring fast, secure connections

Compatibility

• Compatible with Han 10B series bases and inserts
• Part of Han B® connector system
• Quick lock system for rapid assembly applications

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with quick lock functionality

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
