Harting Cable gland, Size 30 wrench, 14 - 18mm clamp range, Pg21

Product Overview

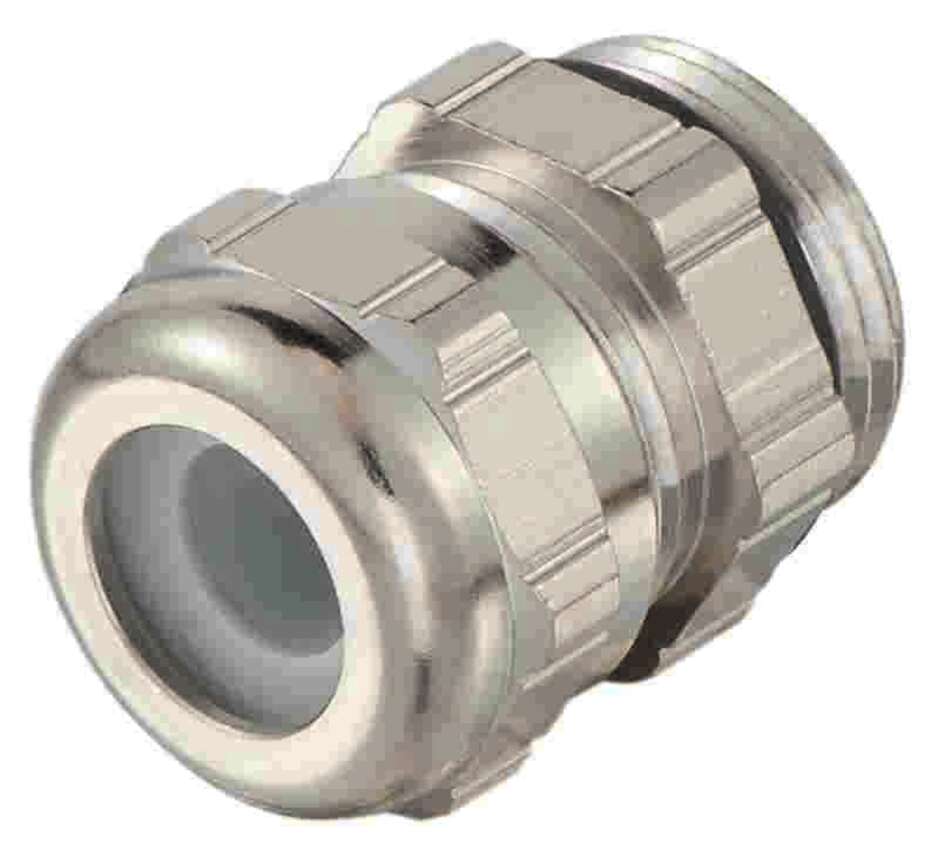

The Uni-Dicht-Verschraubung Pg21, 14-18mm is a high-quality metallic cable gland from the HARTING Han series, specifically designed for industrial connector applications. This nickel-plated brass cable gland provides superior sealing and strain relief for cables in demanding industrial environments, ensuring reliable performance and long service life.

Key Features

• Size: PG 21
• Clamping Range: 14 - 18 mm
• Material: Nickel-plated brass (metal)
• Color: Blue
• Wrench Size: 30 mm
• Protection Rating: IP68/IP69 (IEC 60529)
• Operating Temperature: -40°C to +130°C
• Seal Type: NBR gasket ring with Polyamide clamping ring
• Thread Type: PG (Panzer-Gewinde)

Technical Specifications

This cable gland accessory is part of the HARTING Han CGM-M series and features robust nickel-plated brass construction for excellent corrosion resistance and durability. The NBR seal and Polyamide clamping ring provide an IP68/IP69 ingress protection rating, ensuring complete sealing against dust ingress and protection against continuous water immersion and high-pressure water jets. The metallic construction offers superior cable retention and optimal strain relief when used with HARTING HAN high and low construction hoods.

Compliance & Environmental

• RoHS compliant
• IP68/IP69 ingress protection
• Halogen-free construction
• Suitable for harsh industrial environments
• Explosion-proof rating available for specific applications

Applications

Ideal for industrial applications requiring secure and waterproof cable entry into connector housings. The cable gland provides effective strain relief and environmental sealing for cables in demanding industrial environments, marine applications, and outdoor installations where superior protection against dust and water ingress is critical.
