Description

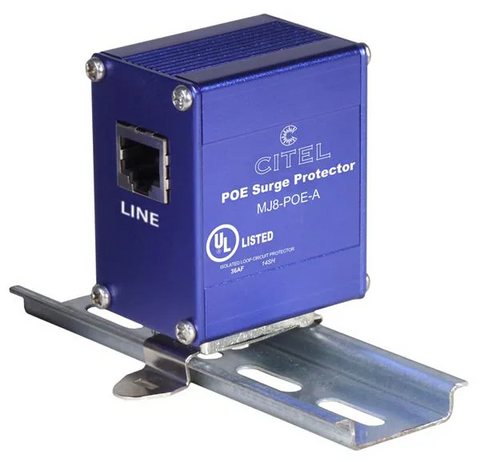

xThis is a surge protection device for Ethernet data lines, fitted with shielded RJ45 female input and output connectors and compatible with PoE++ powered network equipment. It is designed for DIN rail, wall or plate mounting within a control panel, using an aluminium housing rated IP20. The unit operates over a temperature range of -40°C to 85°C and is suited to protecting network switches and connected devices from surges on data lines carrying power over Ethernet.
Key specifications
- IP rating: IP20
- Operating voltage: 60 VDC
- Connection: RJ45 shielded connectors Female input/output
- Operating temperature: -40°C to 85°C
- Mounting: DIN rail / Wall / Plate
Specifications
x| IP Rating / Detailed | IP20 |
| IP Rating | IP20 |
| Compliance/Certifications | IEC 61643-21 / EN 61643-21 / UL497 B IEEE 802-3af/3at/3bt / UL 497B |
| Temperature: Operating | -40°C to 85°C |
| Part Depth (mm) | 45 mm |
| Part Width (mm) | 34 mm |
| Part Height (mm) | 55 mm |
| Weight (g) | 120 g |
| Material: Product Housing | Aluminium |
| Connection Type | RJ45 shielded connectors Female input/output |
| Operating Voltage | 60 VDC |
| Mounting Type | DIN rail / Wall / Plate |
