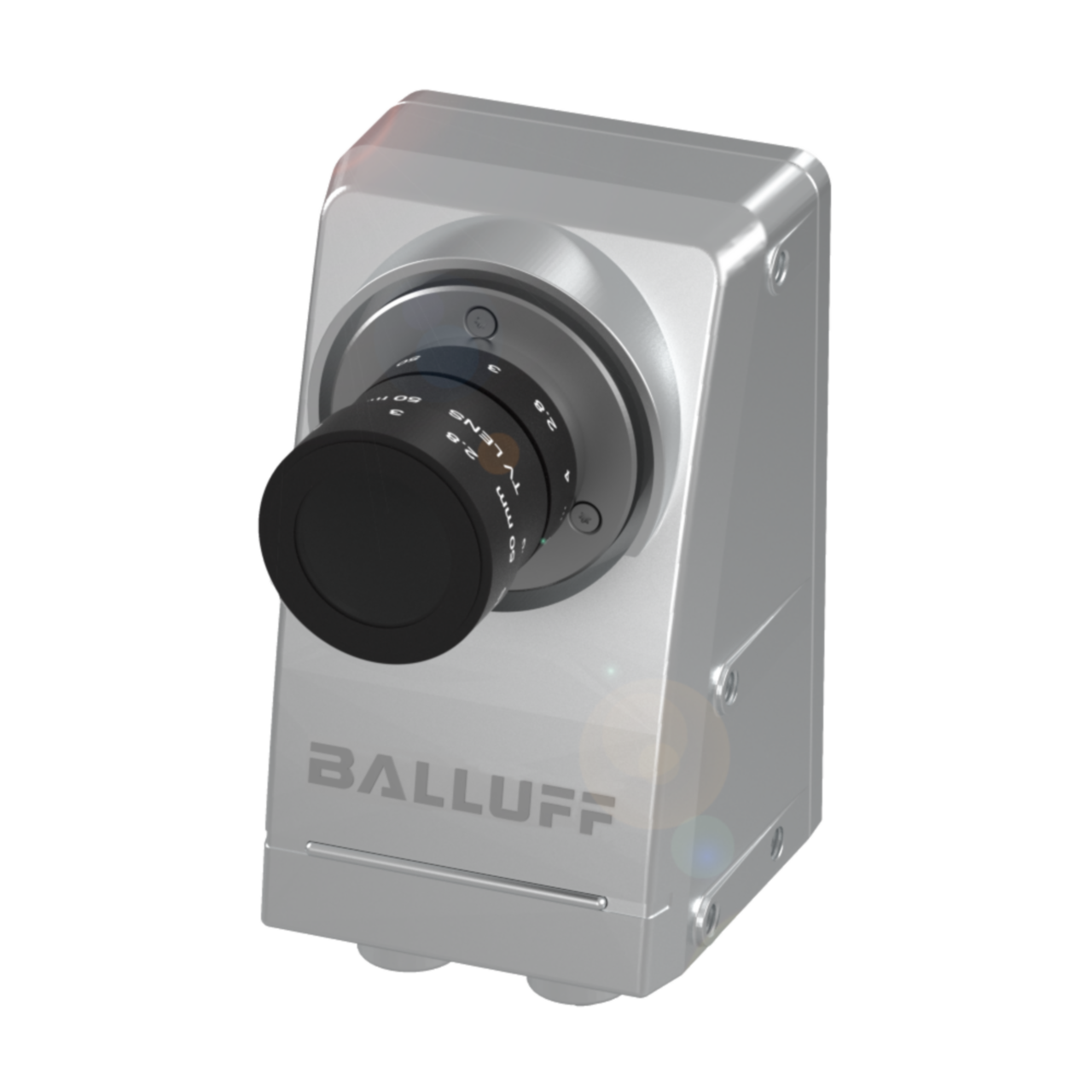

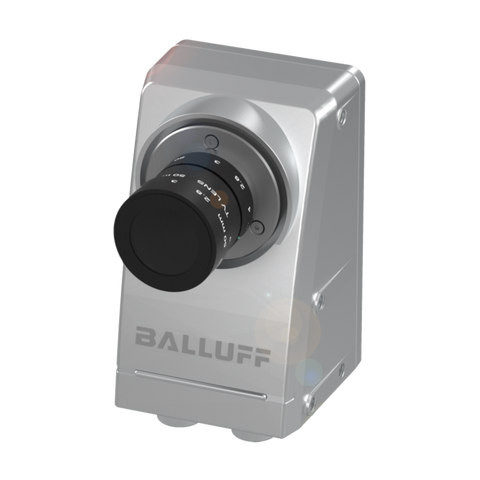

Balluff BVS SC-C1280Z00-30-000 Smart camera for machine vision Part number BVS002F

The BVS SC-C1280Z00-30-000 is a smart camera from Balluff's BVS series for machine vision applications. It integrates image capture and processing in a single housing, with two configurable IO switching outputs for signalling to a PLC or control system. The aluminium painted housing is rated IP67 with the protective tube fitted, and the camera operates from 19.2 to 28.8 VDC across an ambient temperature range of 0 to 55°C, making it suitable for mounting directly on production lines and machinery for inspection and identification tasks.

Key specifications

• IP rating: IP67, with protective tube
• Operating voltage: 19.2...28.8 VDC
• Output: 2x IO configurable
• Operating temperature: 0...55 °C
• Dimensions: 62 x 55 x 110 mm
• Material: Aluminium, Painted
