Description

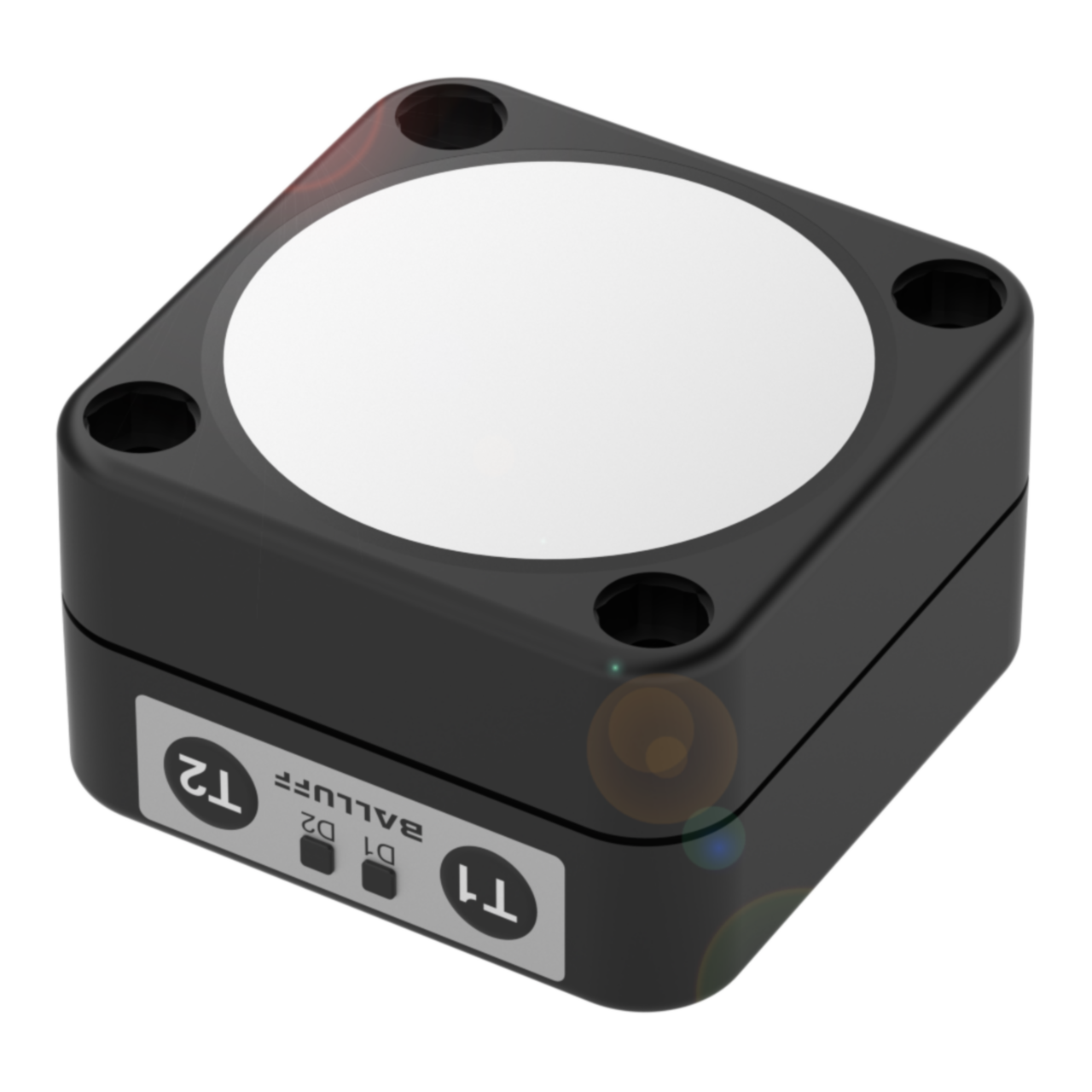

xThis is an ultrasonic sensor with a block-style housing, detecting objects within a range of 600 to 8000 mm using PU foam, epoxy resin and glass sensing materials. It offers a PNP/NPN NO/NC push-pull switching output with a switching frequency of 3 Hz, and connects via an M12x1 5-pin male connector. Housed in PBT with an IP67 rating, it operates across a temperature range of -25 to 70°C and a supply voltage of 9 to 30 VDC, suiting installation in industrial automation panels and machinery where non-contact distance or presence detection is required.
Key specifications
- IP rating: IP67
- Operating voltage: 9...30 VDC
- Connection: Connector, M12x1-Male, 5-pin
- Output: PNP/NPN NO/NC push-pull
- Operating temperature: -25...70 °C
- Material: PBT
Specifications
x| style_housing | block style |
| range | 600...8000 mm |
| switching_output | PNP/NPN NO/NC push-pull |
| switching_frequency | 3 Hz |
| housing_material | PBT |
| material_sensing | PU foam/Epoxy resin/Glass |
| connection | Connector, M12x1-Male, 5-pin |
| operating_voltage | 9...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP67 |
| approval_conformity | cULusCEWEEEUKCA |
