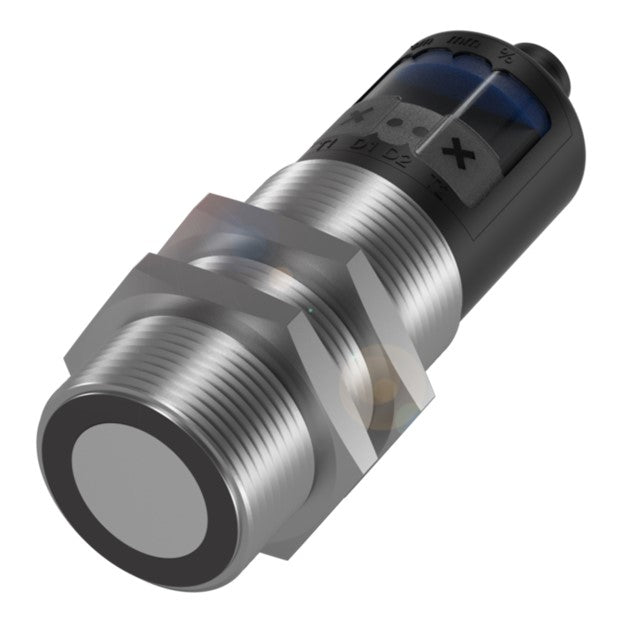

Balluff BUS M30M1-PWC-20/130-S92K Ultrasonic sensor, analog output Part number BUS003N

The BUS M30M1-PWC-20/130-S92K is an ultrasonic sensor with analogue output, housed in a cylindrical M30 barrel measuring 94.5mm in length with an M30x1.5 mounting thread. It detects objects using ultrasonic sensing up to a rated operating distance of 1300mm and provides two PNP switching outputs configurable as normally open or normally closed, alongside an operating voltage range of 9-30 VDC. The housing combines brass, nickel-free coating, PBT and TPU materials with an IP67 rating, making it suitable for use in industrial environments where connection is made via an M12x1 5-pin male connector.

Key specifications

• IP rating: IP67
• Operating voltage: 9 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 5-pin
• Output: 2x PNP normally open/normally closed (NO/NC)
• Mounting: Nut M30x1.5
