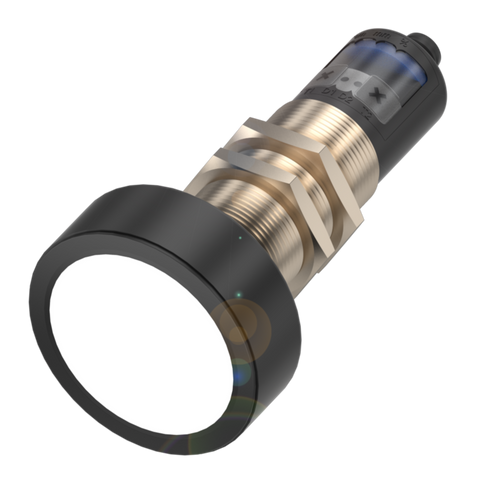

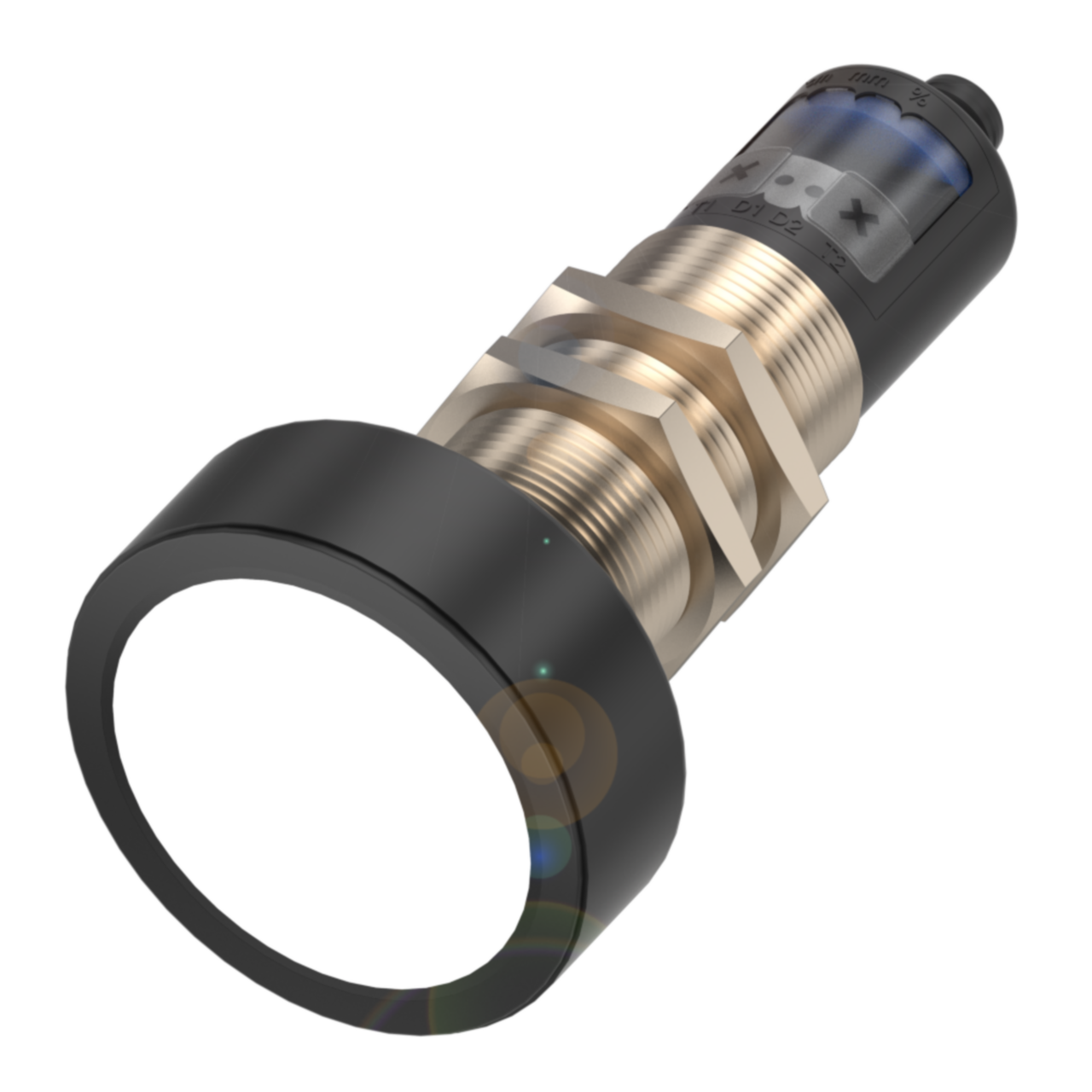

Balluff BUS M30M1-PWX-60/600-S92K Ultrasonic sensor, 2xPNP Part number BUS003Z

This ultrasonic sensor detects objects using sound waves reflected from the target surface, with a sensing range of 600 to 8000 mm. It provides two PNP switching outputs, configurable as normally open or normally closed, and connects via an M12x1 5-pin connector. The housing is constructed from nickel-plated brass, PBT and TPU, rated IP67 for use in environments with dust and moisture exposure, and suitable for ambient temperatures between -25 and 70 °C. It is typically applied in industrial automation settings where non-contact detection over longer distances is required, such as level monitoring or object presence detection on machinery.

Key specifications

• IP rating: IP67
• Operating voltage: 9...30 VDC
• Connection: Connector, M12x1-Male, 5-pin
• Output: 2x PNP normally open/normally closed (NO/NC)
• Operating temperature: -25...70 °C
• Material: Brass, nickel-platedPBT, TPU
