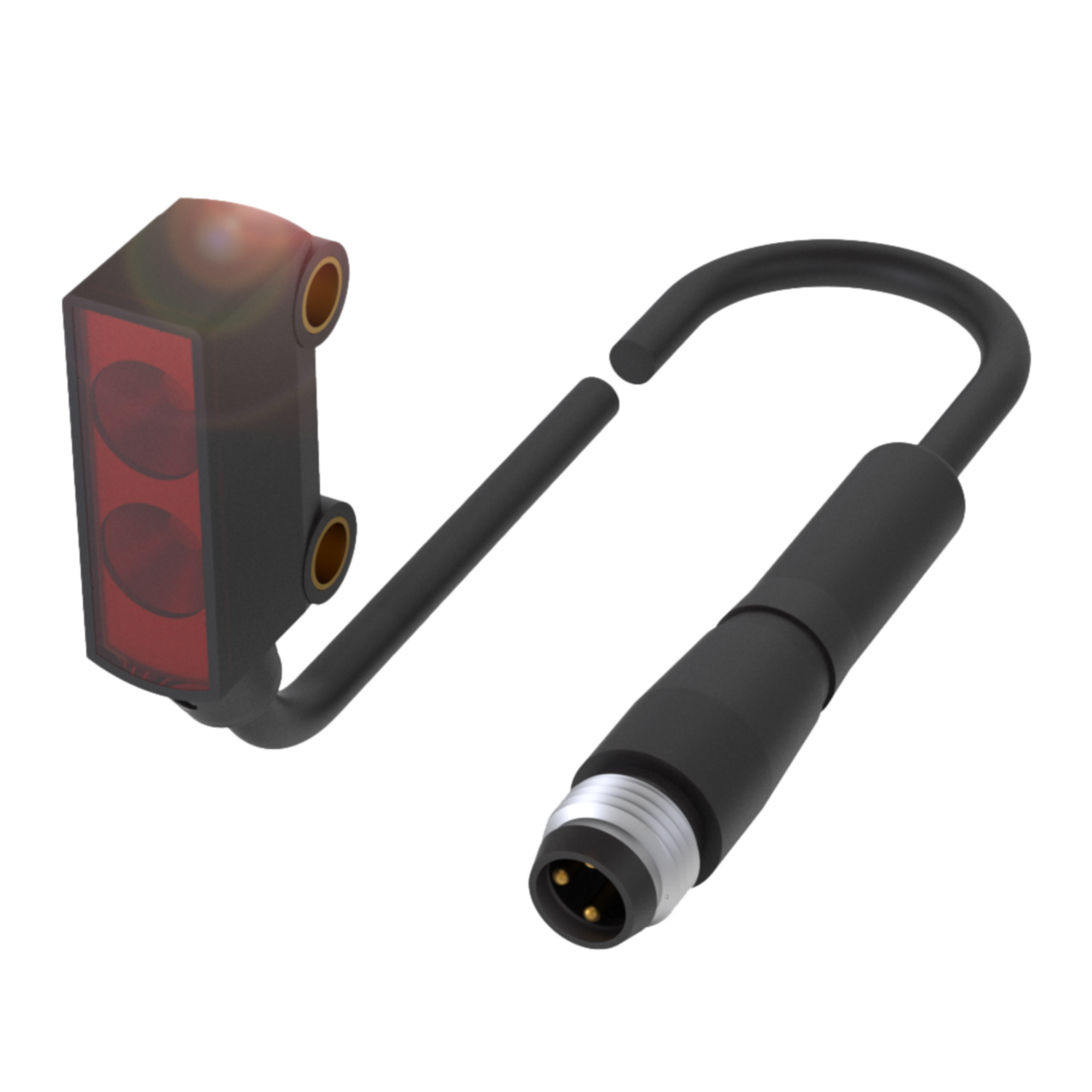

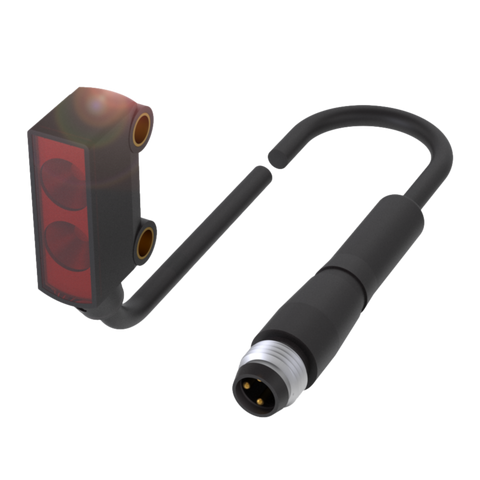

Balluff BOS R020K-PS-PR11-00,2-S49 Retroreflective sensor Part number BOS020T

This is a retroreflective photoelectric sensor with an ABS housing, designed to detect objects using a reflector target at distances of up to 3 metres. It operates on a 10...30 VDC supply and connects via an M8, 3-pin male cable connector. The compact housing dimensions suit installation in confined panel or machine locations where space is limited.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC
• Dimensions: 7.7 x 26.8 x 13.5 mm
• Material: ABS
