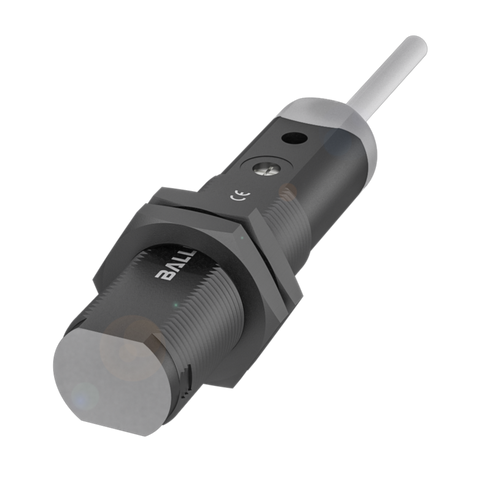

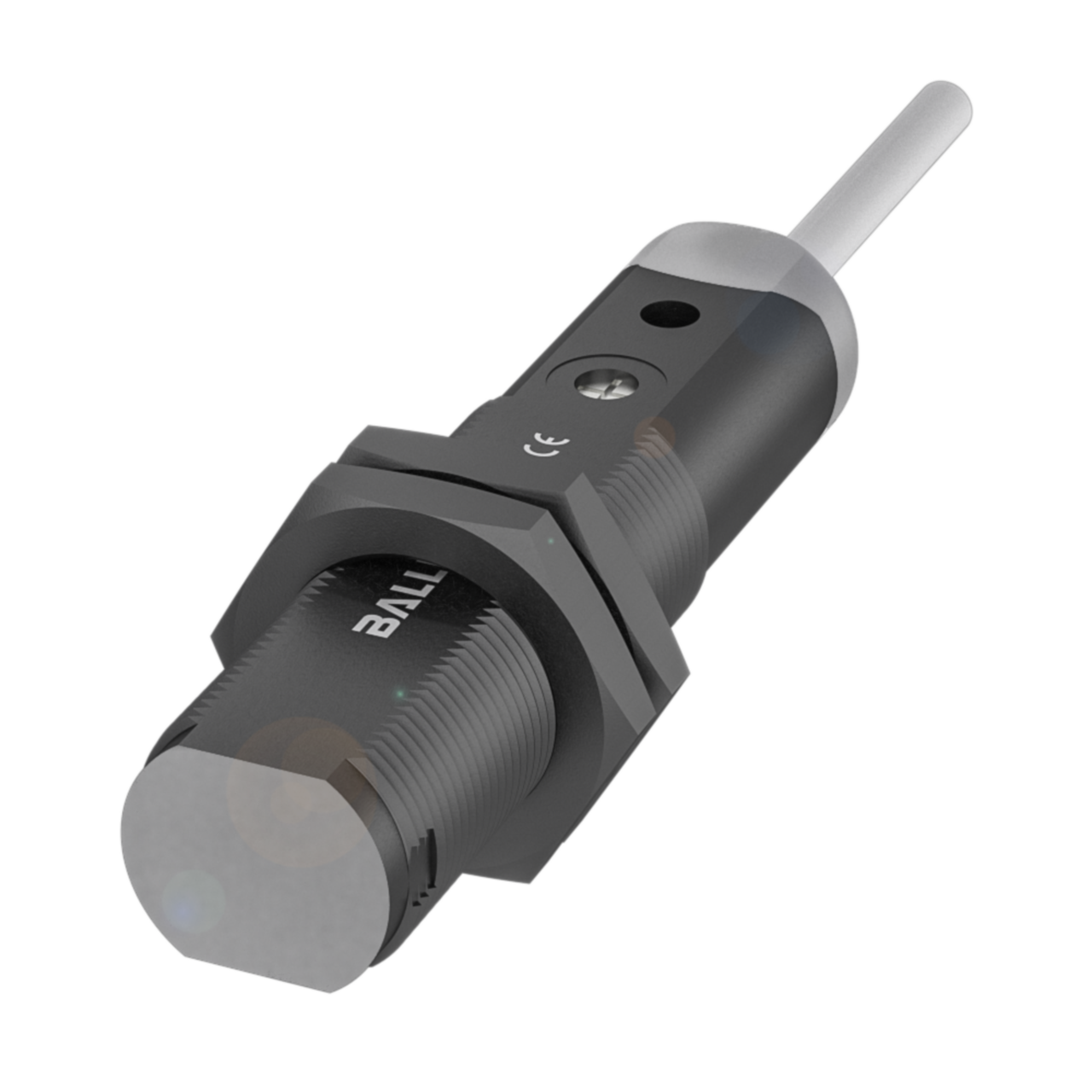

Balluff BOS 18KF-NA-1PD-C-02 Diffuse sensor, NPN, NO/NC Part number BOS00J1

This diffuse photoelectric sensor detects objects by reflecting light directly off the target surface, without requiring a reflector, over a sensing range of 0 to 400 mm. It operates on 10 to 30 VDC with an NPN output configurable as normally open or normally closed, and is housed in a Ø 18 x 77 mm PBT body with a PMMA sensing element. The unit is fitted with a 2.00 m PVC cable for connection, suiting applications where object presence or position must be sensed in industrial automation panels and machinery.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Dimensions: Ø 18 x 77 mm
• Material: PBT
