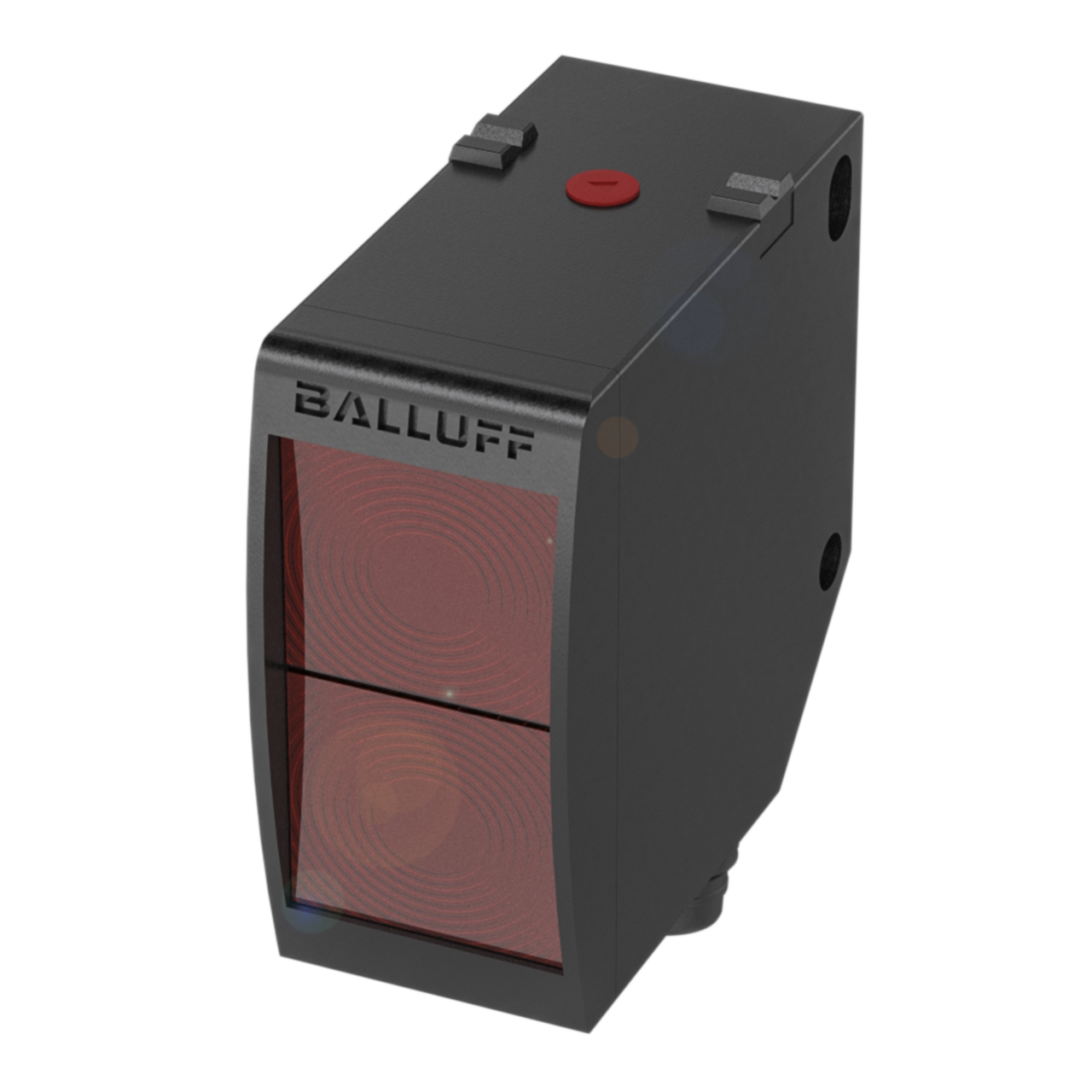

Balluff BOS 23K-GI-RD10-S4 Diffuse sensor, PNP/NPN, NO/NC Part number BOS0171

This diffuse photoelectric sensor detects objects without requiring a reflector, operating over a sensing range of 0 to 2000 mm. It provides PNP/NPN output with NO/NC switching, allowing flexible integration into different control logic configurations, and connects via an M12x1 4-pin male connector. Housed in PCABS with a PMMA sensing element, it operates from an 18 to 30 VDC supply and is suited to industrial automation panels and machine builds requiring compact object detection.

Key specifications

• Operating voltage: 18...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: 23 x 51 x 52.4 mm
• Material: PCABS
