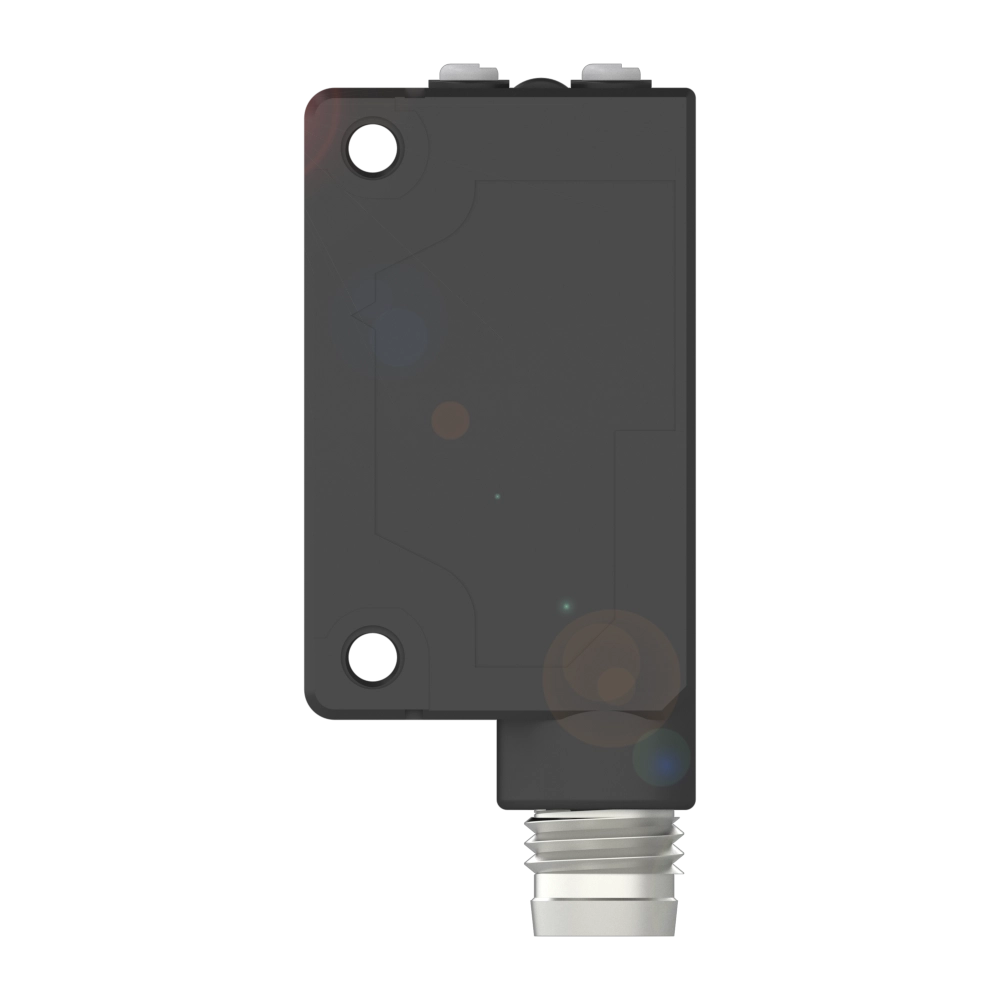

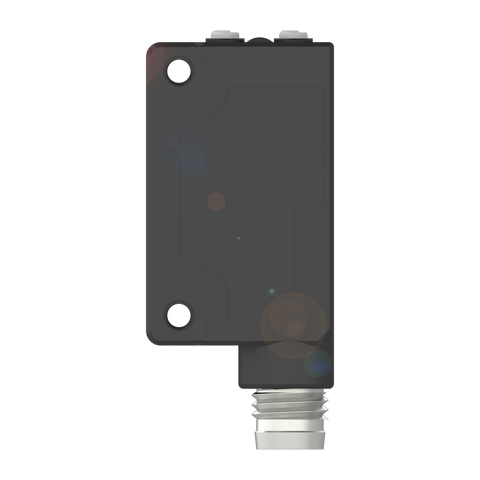

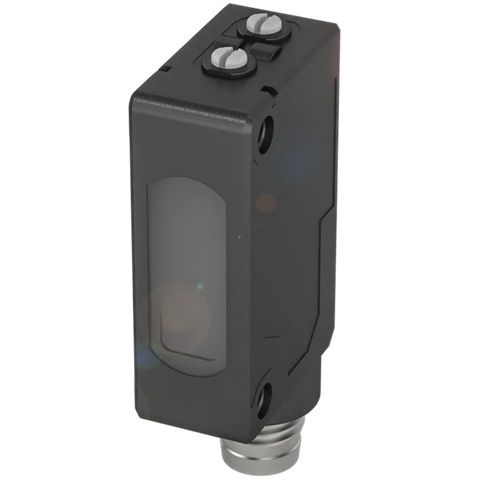

Balluff BOS 5K-PU-LH12-S75 Diffuse sensor, PNP, NO/NC

Diffuse sensors with background suppression ensure reliable detection regardless of the surface, color and material. Their scanning behavior is virtually constant, even with different reflectance levels.
Vendor: Balluff
SKU: BOS01JK
Availability: In stock (Purchase on demand)
Product type: Field Sensing & Switching
Please hurry! Only 4 left in stock
Description
Description
x

Diffuse sensors with background suppression ensure reliable detection regardless of the surface, color and material. Their scanning behavior is virtually constant, even with different reflectance levels.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationscULus CE WEEE UKCA / IEC 60947-5-2
Material: Housing / GripPBT / PC
Material: Sensing Surface / ContactsPMMA

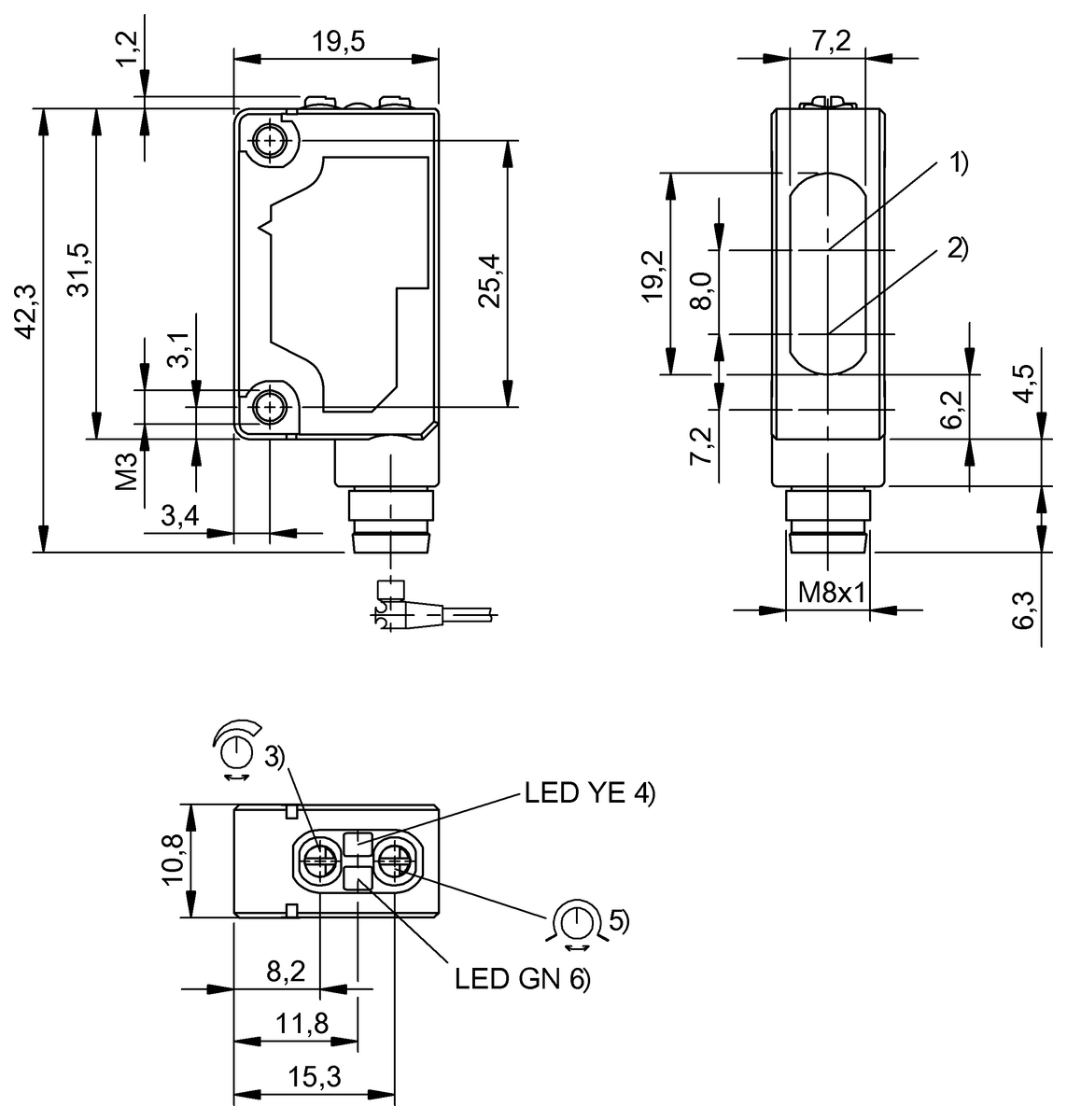

Part Width (mm)43.5mm
Part Length (mm)10.8mm
Part Height (mm)19.5mm
Connection TypeM8x1 / Male / 4-pin
Tightening Torque0.5 Nm
Rated Operating Distance (mm)300mm (adjustable)
Switching OutputPNP normally open/normally closed (NO/NC)
Switching Frequency (Hz)2000 Hz
Operating Voltage 10 - 30 VDC
Rated Voltage24 VDC
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
