Description

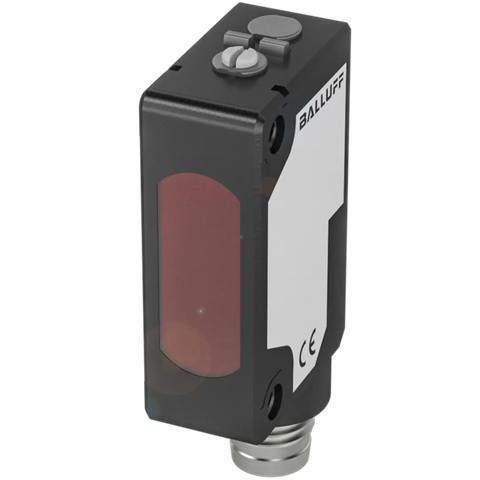

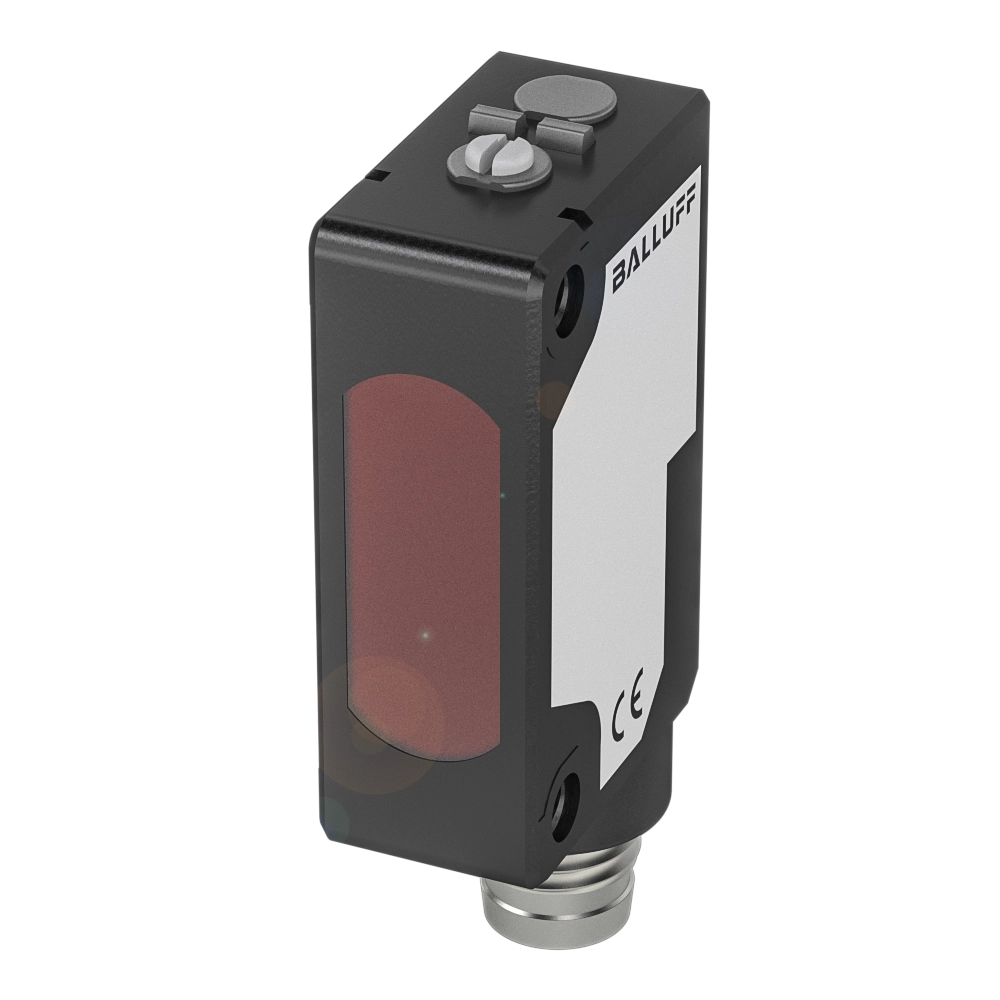

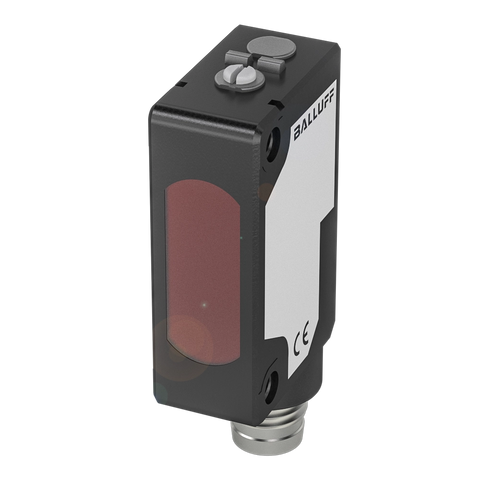

xBalluff’s retroreflective sensor is especially easy to align thanks to generous mounting tolerances. You only need to mount one electrical device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of their surface, colour and material. A pole filter makes them suitable for detecting shiny objects as well.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE WEEE UKCA / IEC 60947-5-2 |
| Material: Housing / Grip | PBT / PC |
| Material: Sensing Surface / Contacts | PMMA |
| Part Width (mm) | 43.5mm |
| Part Length (mm) | 10.8mm |
| Part Height (mm) | 19.5mm |
| Connection Type | M8x1 / Male / 4-pin |
| Rated Operating Distance (mm) | 4 000mm (adjustable) |
| Switching Output | PNP normally open (NO) Pin 4 |
| Switching Frequency (Hz) | 500 Hz |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 VDC |
| Mounting Type | Screw M3 (part) |
| Rated Operating Current | 100 mA |
