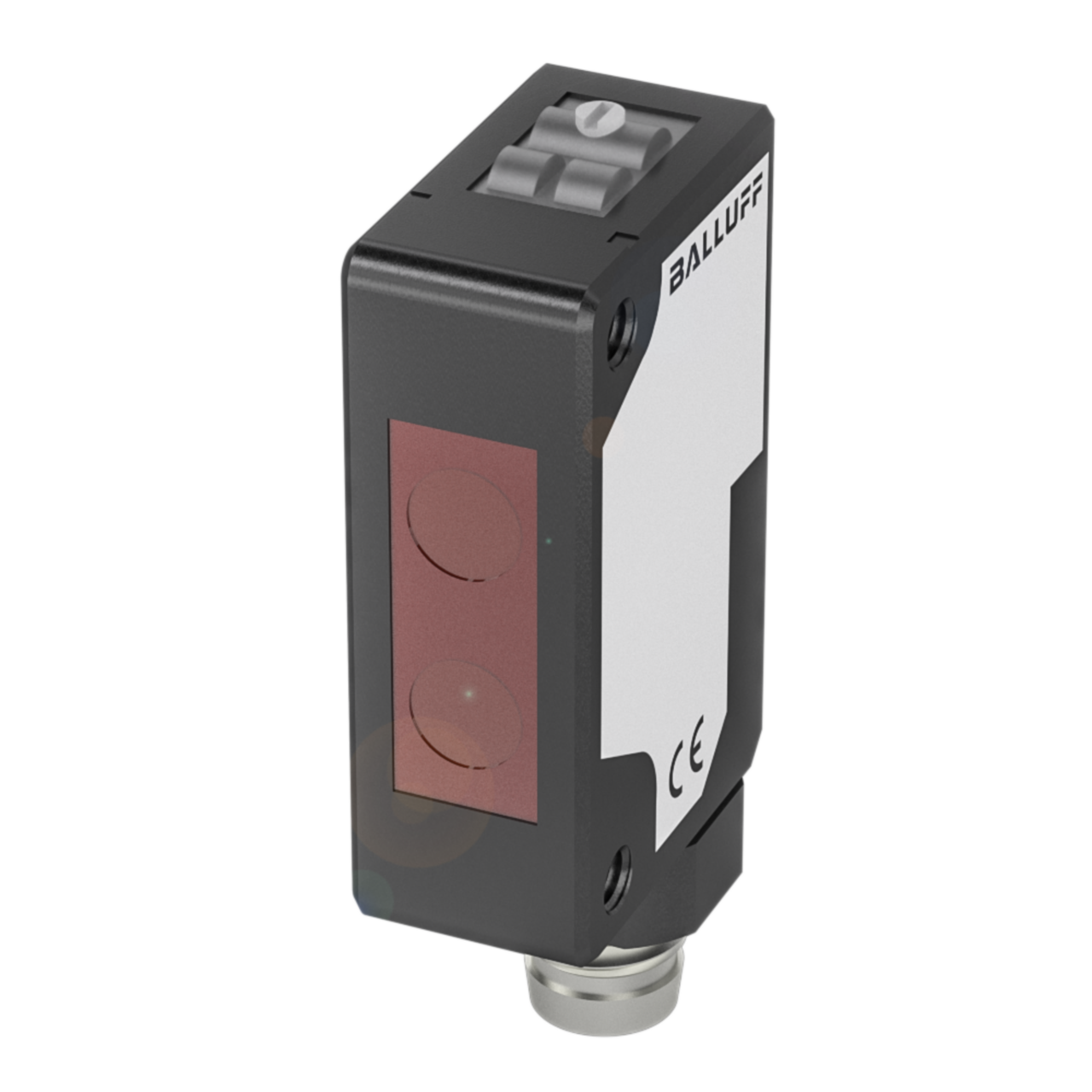

Balluff BOS 5K-PS-RR10-S49 Retroreflective , PNP, NO Part number BOS015E

This is a retroreflective photoelectric sensor with a PNP normally open output, designed to detect objects using a reflector target over a range of 0 to 4 metres. The housing is constructed from PCPBT with a PMMA sensing element, and connection is made via an M8x1 male 3-pin connector. It operates on a 10 to 30 VDC supply, suiting installation in industrial automation panels and machine builds requiring compact photoelectric sensing.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Dimensions: 10.8 x 43.5 x 19.5 mm
• Material: PCPBT
