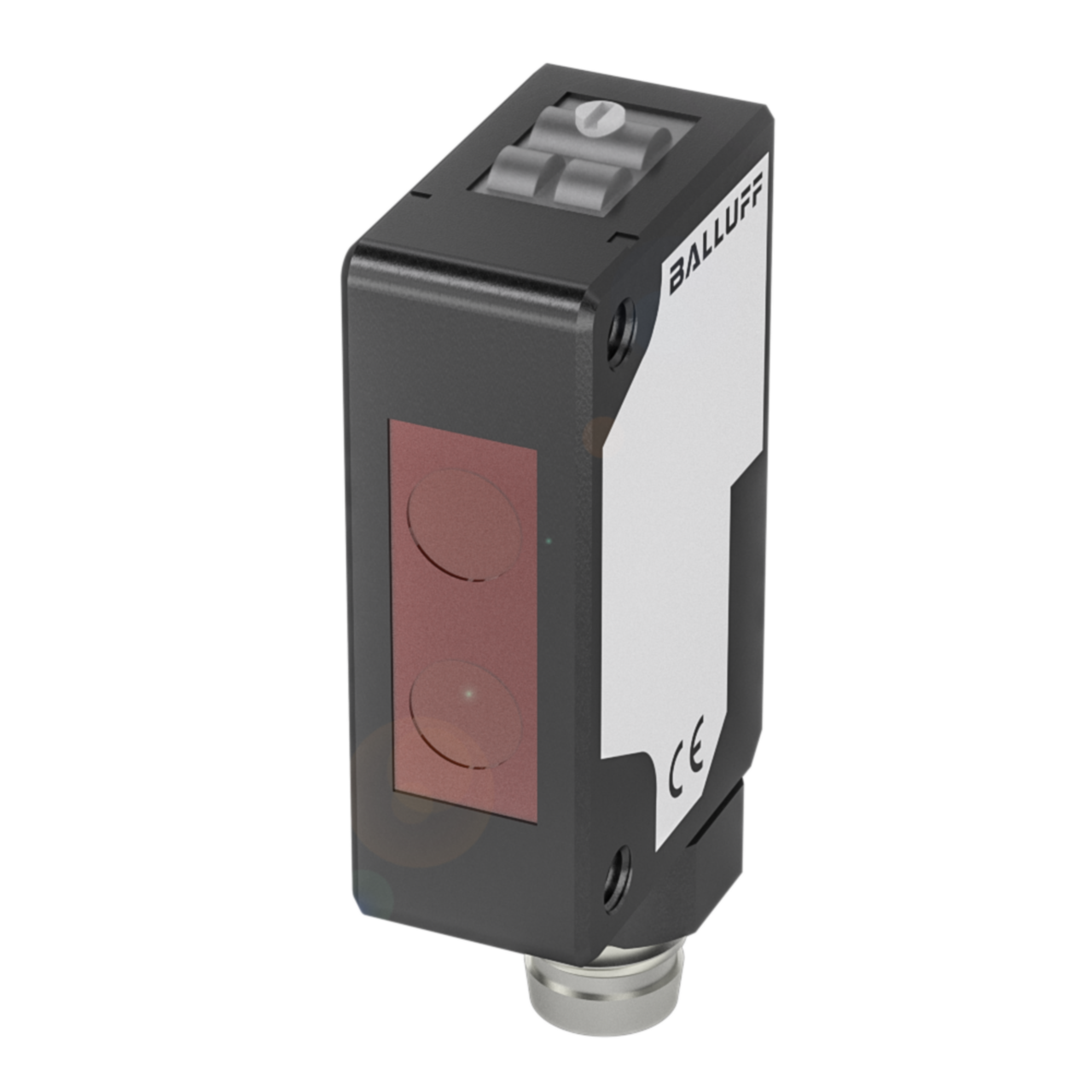

Balluff BOS 5K-NS-RD11-S49 Diffuse sensor, PNP, NO Balluff
Balluff BOS 5K-NS-RD11-S49 Diffuse sensor, PNP, NO Balluff

Balluff BOS 5K-NS-RD11-S49 Diffuse sensor, PNP, NO Part number BOS015N

This diffuse sensor detects objects without a reflector by sensing light reflected directly from the target surface, over a range of 50 to 200 mm. It operates on 10 to 30 VDC with a PNP normally open output, and connects via an M8x1, 3-pin male connector. The housing is constructed...
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This diffuse sensor detects objects without a reflector by sensing light reflected directly from the target surface, over a range of 50 to 200 mm. It operates on 10 to 30 VDC with a PNP normally open output, and connects via an M8x1, 3-pin male connector. The housing is constructed from PCPBT with a PMMA sensing element, suited to compact mounting positions in automation panels and machine builds.

Key specifications

  • Operating voltage: 10...30 VDC
  • Connection: Connector, M8x1-Male, 3-pin
  • Dimensions: 10.8 x 43.5 x 19.5 mm
  • Material: PCPBT
Specifications
Specifications
x
dimension10.8 x 43.5 x 19.5 mm
range50...200 mm
housing_materialPCPBT
material_sensingPMMA
connectionConnector, M8x1-Male, 3-pin
operating_voltage10...30 VDC
approval_conformitycULusCEWEEEUKCA
Documents
Documents
x
Download Datasheet
