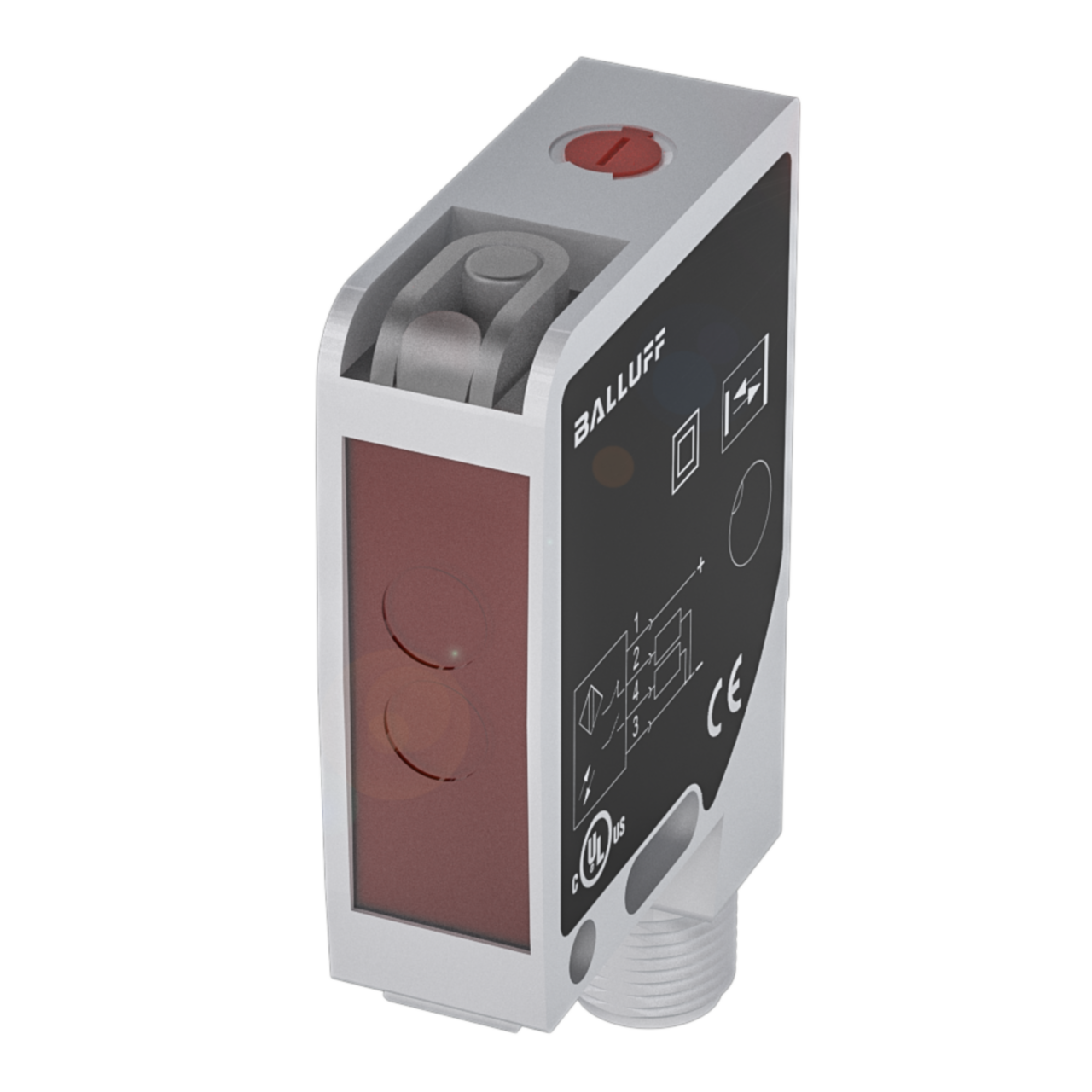

Balluff BOS 21M-PA-LD10-S4 Diffuse sensor, PNP, NO/NC Part number BOS0032

This diffuse photoelectric sensor detects objects without requiring a reflector, operating over a range of 0 to 600 mm. It provides a PNP output configurable as normally open or normally closed, and connects via an M12x1, 4-pin male connector, operating on 10 to 30 VDC. The housing is constructed from die-cast, powder-coated zinc and aluminium, suiting use in industrial automation panels and machine applications where object presence detection is required.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: 15 x 50 x 42.5 mm
• Material: Zinc, Die casting, Powder coated Aluminium
