Description

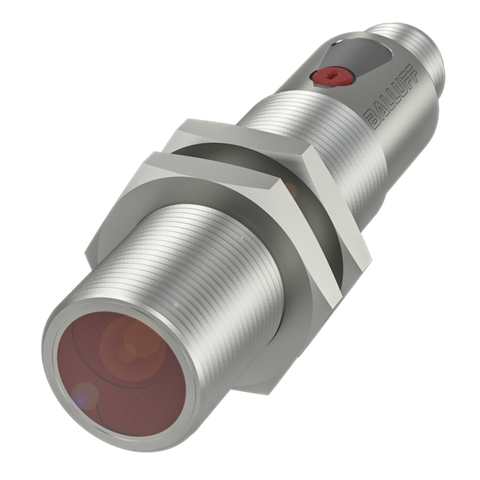

xThis photoelectric sensor is ideal for object detection with background suppression. It features an adjustable sensing range of 30 to 300 mm, PNP normally open (NO) output, and provides reliable detection in industrial automation environments.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass |
| Material: Sensing Surface / Contacts | Glass |
| Part Length (mm) | 75mm |
| Part Diameter (mm) | 18mm |
| Connection Type | M12x1 / Male / 4-pin |
| Tightening Torque | 15 - 30 Nm |
| Rated Operating Distance (mm) | 300mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 500 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Nut M18x1 |
| Rated Operating Current | 100 mA |
