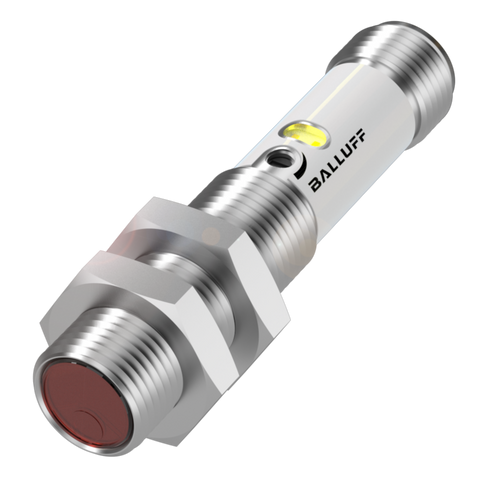

Balluff BOS 12M-PO-ID10-S4 Diffuse sensor, PNP, NC, Ø 12 x 60mm
Balluff BOS 12M-PO-ID10-S4 Diffuse sensor, PNP, NC, Ø 12 x 60mm

Balluff BOS 12M-PO-ID10-S4 Diffuse sensor, PNP, NC, Ø 12 x 60mm

This diffuse photoelectric sensor is designed for object detection with a range of up to 400 mm. It operates with PNP normally closed (NC) output, offers short-circuit protection, and features a rugged IP67-rated housing suitable for harsh environments.
Vendor: Balluff
SKU: BOS01ZJ
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This diffuse photoelectric sensor is designed for object detection with a range of up to 400 mm. It operates with PNP normally closed (NC) output, offers short-circuit protection, and features a rugged IP67-rated housing suitable for harsh environments.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-plated
Material: Sensing Surface / ContactsPMMA
Part Length (mm)60mm
Part Diameter (mm)12mm
Connection TypeM12x1 / Male / 4-pin / A-coded
Tightening Torque7 - 15 Nm
Rated Operating Distance (mm)400mm
Switching OutputPNP normally closed (NC) Pin 2
Switching Frequency (Hz)1000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Mounting TypeNut M12x1
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
