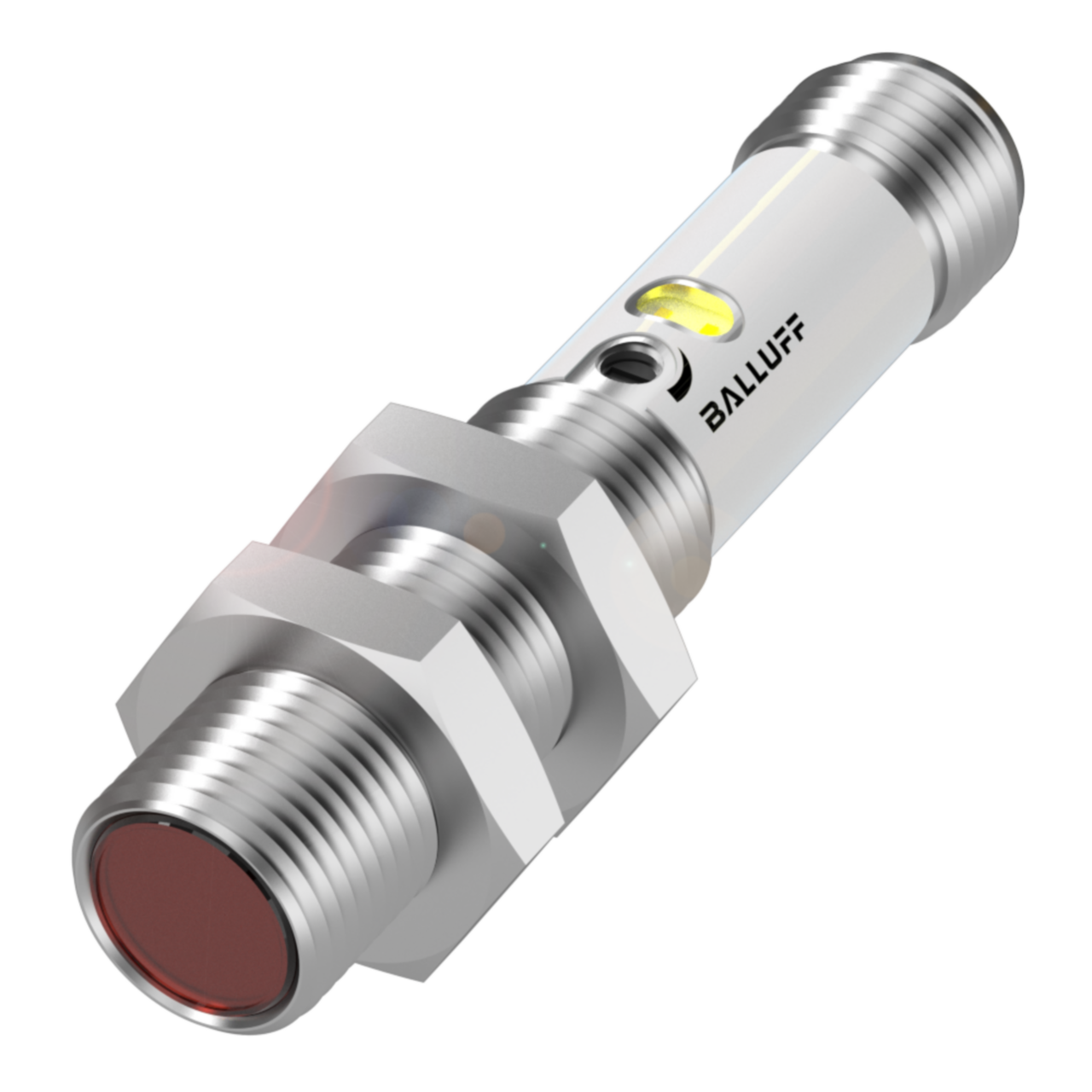

Balluff BOS 12M-PA-RE10-S4 Through-beam sensor, PNP, NO/NC Part number BOS024U

This through-beam photoelectric sensor operates as a receiver unit, providing PNP output with selectable NO/NC switching. Housed in nickel-plated brass with a Ø12 x 60 mm cylindrical body, it is suited to panel and machine installations requiring a compact, durable sensing element. It detects across a range of up to 8 m and connects via an M12x1, 4-pin male connector, operating from a 10...30 VDC supply.

Key specifications

• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Dimensions: Ø 12 x 60 mm
• Material: Brass, nickel-plated
