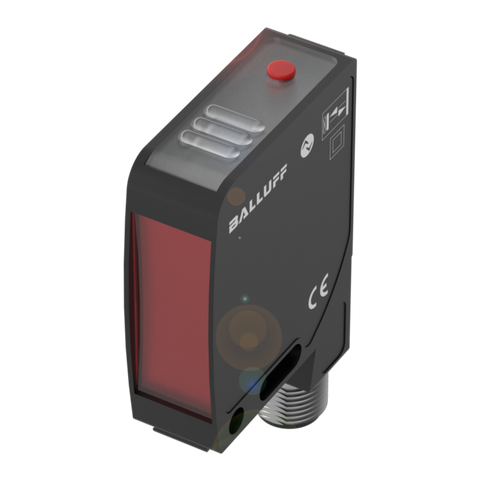

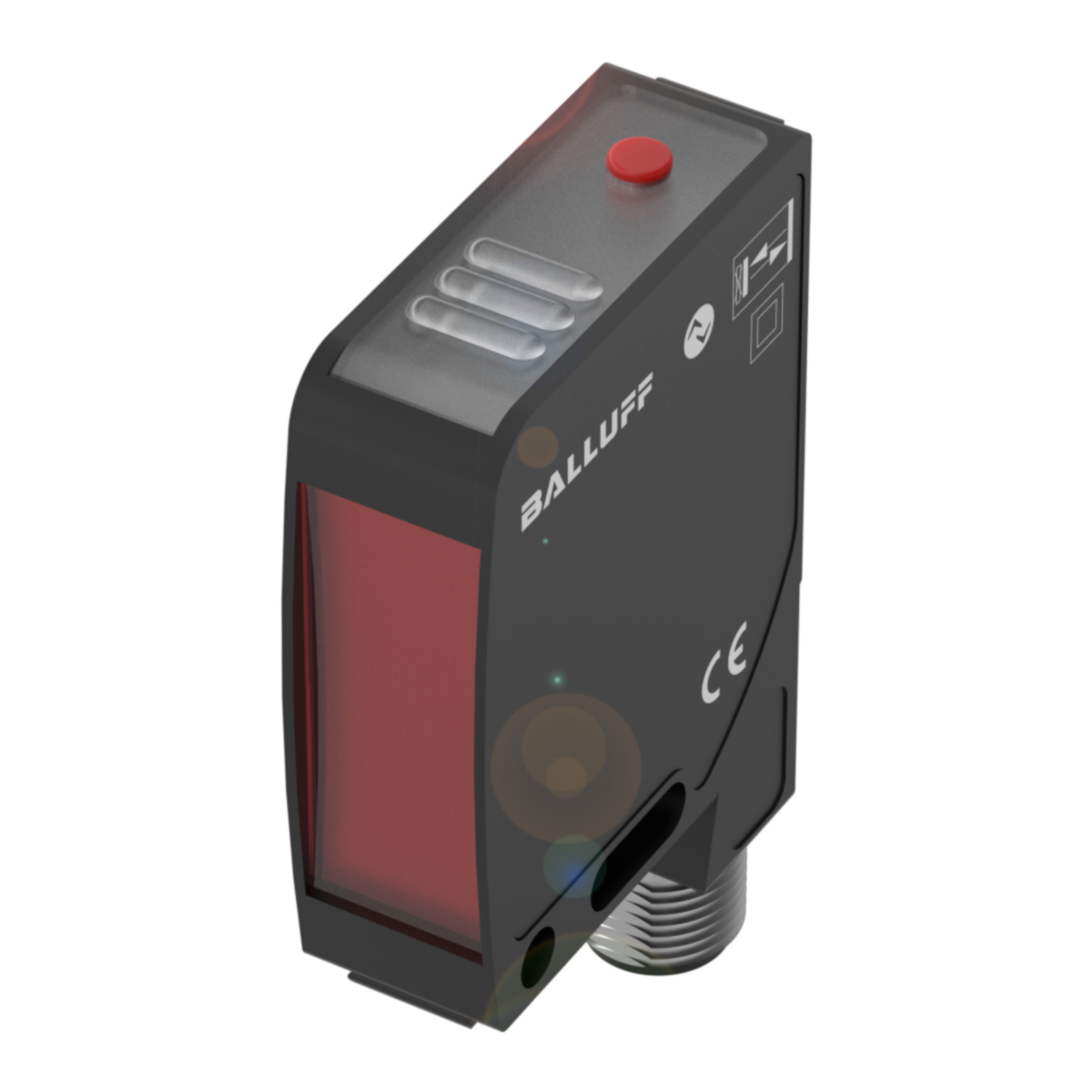

Balluff BOD 21M-LBI05-S4 Photoelectric distance sensor Part number BOD002L

The BOD 21M-LBI05-S4 is a photoelectric distance sensor from Balluff's Field Sensing & Connectivity range, designed for measuring distance in industrial automation applications. It features an IP67-rated housing constructed from aluminium, glass, PMMA and zinc die casting, making it suitable for demanding panel and machine environments. The sensor connects via an M12x1 4-pin male connector and supports IO-Link 1.1 communication, operating on 15-30 VDC with a switching frequency of 250 Hz in SIO mode. It carries CE, UKCA and cULus compliance in accordance with IEC 60947-5-2 and IEC 60947-5-7.

Key specifications

• IP rating: IP67
• Operating voltage: 15 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin
• IO-Link: IO-Link 1.1
