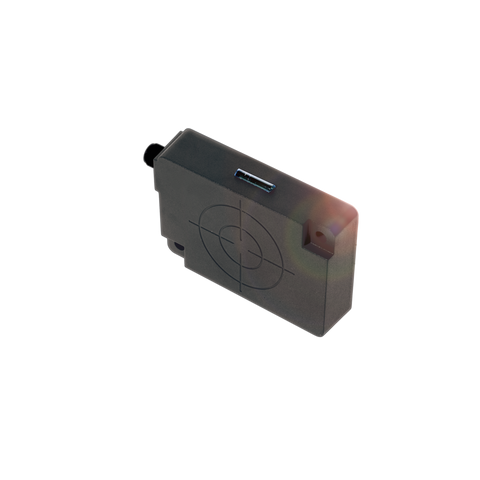

Balluff BIS M-411-068-001-00-S115 HF read/write head, 13.56MHz
Balluff BIS M-411-068-001-00-S115 HF read/write head, 13.56MHz

Balluff BIS M-411-068-001-00-S115 HF read/write head, 13.56MHz

The high-frequency (13.56 MHz) read/write device offers versatile communication options and is built to endure the rigors of industrial environments. The device supports multiple data carrier types and provides reliable performance for tasks such as identification, access control, and tracking in manufacturing and logistics settings. Antenna Type: Round Operating Voltage:...
Vendor: Balluff
SKU: BIS00W6
Availability: Out Of Stock
Product type: Machine Vision & Identification
Please hurry! Only 0 left in stock
Description
Description
x

The high-frequency (13.56 MHz) read/write device offers versatile communication options and is built to endure the rigors of industrial environments. The device supports multiple data carrier types and provides reliable performance for tasks such as identification, access control, and tracking in manufacturing and logistics settings.

  • Antenna Type: Round
  • Operating Voltage: 10...30 VDC
  • IP Rating: IP67
  • Operating Temperature: -20...50 °C
  • Material: PC, With PU potting
  • Dimensions: 75 x 24 x 105 mm
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE / cULus / UKCA / WEEE
Compliance/CertificationsCE / cULus / UKCA / WEEE
Country of OriginGermany
MaterialPC / PU
Part Depth (mm)24mm
Part Width (mm)45mm
Part Height (mm)150mm
Weight (g)200g
Supported data carrier typesDIN ISO 14443 DIN ISO 15693
Connection Type8-pin / M12x1-Male
InterfaceRS232
Documents
Documents
x
Download Datasheet
