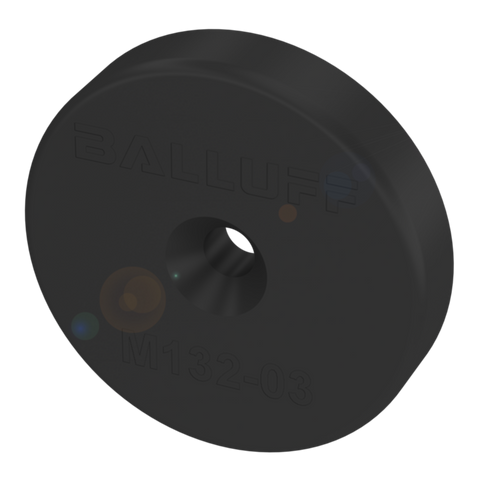

Balluff BIS M-132-03/L HF Data carrier, 13.56MHz Part number BIS00YF

This is a compact HF RFID data carrier operating at 13.56 MHz, used for storing identification and process data on workpieces, carriers or tooling within automation systems. The disc-shaped tag measures Ø 24.9 x 4.8 mm and is housed in black ABS, rated IP68 for use in demanding industrial environments across an ambient temperature range of -20 to 85°C. As a metal-free type, it must be installed in a clear zone away from metallic surfaces to ensure reliable read/write performance.

Key specifications

• IP rating: IP68
• Operating temperature: -20...85 °C
• Dimensions: Ø 24.9 x 4.8 mm
• Material: ABS, black
• Mounting: metal-free (clear zone)
