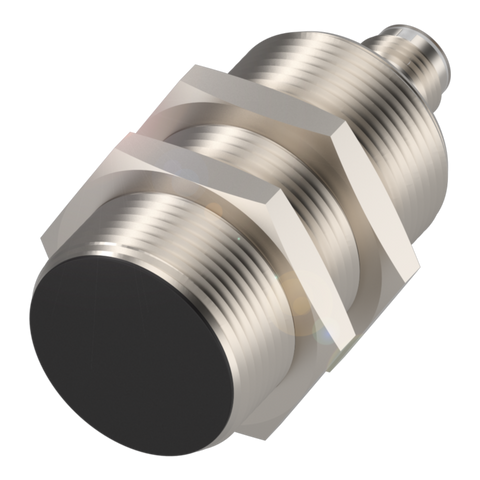

Balluff BIS M-400-045-401-07-S4 HF read/write head, 13.56MHz Part number BIS015T

This Balluff BIS M-400 unit is an HF RFID read/write head operating at 13.56 MHz, used for identifying and exchanging data with compatible RFID tags in automation systems. It can be installed either flush in metal or in a metal-free clear zone, giving flexibility when mounting within panels or on machine structures. The head connects via an M12x1, 4-pin male connector and is housed in nickel-plated brass, with an IP67 rating suited to industrial environments.

Key specifications

• IP rating: IP67
• Operating voltage: 18...30 VDC Supports only LPS/Class 2
• Connection: Connector, M12x1-Male, 4-pin
• Operating temperature: 0...70 °C
• Dimensions: Ø 30 x 65.9 mm
• Material: Brass, Nickel-plated brass nuts, nickel-plated
