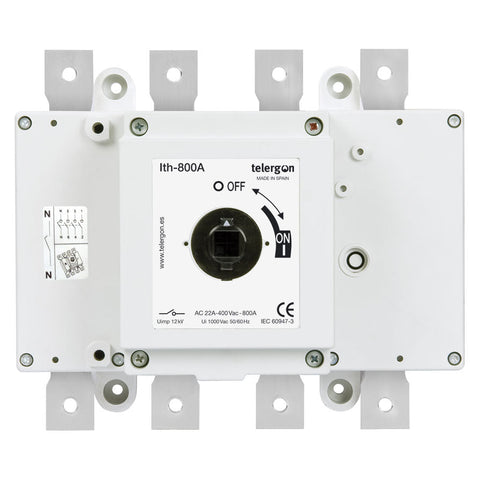

Telergon Switch disconnector, size 3, 3-pole, 800A

Switch – disconnectors on-load, are available from 40A to 6300A in 3P – 3P+N & 4P versions under request on order. Rated breaking current of up to 8 times the rated operational current, whit ability to establish and support short circuit currents up to 100kA. Uninterrupted duties in extreme tropic and polar conditions, as well as the polluted environment of any industrial process. Protection against accidental over voltages in equipments connected between phase and neutral (our standard 3P+N) whit advanced switched neutral pole (early make – late break).

Technical Specifications:

Rated Thermal Current: 800A

Poles: 3P

Rated Insulated Voltage: 1000Vdc

Rated Impulse Withstand Voltage: 12kV

Short Circuit Current: 25kA

Number of Mechanical Operations Cycles: 3000

Accessories to get IP65 Rating:

DS-LI31 (Direct Handle)

DS-LA31 (External Handle) Included Shaft

DS-LA33 (External Handle) Without Shaft

DS-LR31 (External Handle) Included Shaft
