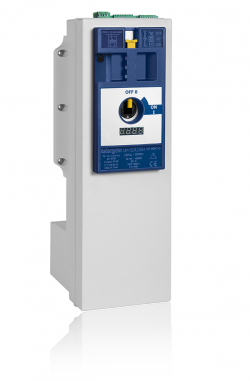

Telergon Motorized unit kit, size 2, 230VAC, 500 - 630A Part number UM-C21230Z

This kit provides motorised operation for a size 2 switching device rated between 500 and 630A, with a 230VAC supply for the drive mechanism. It is used to convert manually operated units to remote or automatic actuation within power distribution assemblies. Typical application is in control panels where remote switching...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This kit provides motorised operation for a size 2 switching device rated between 500 and 630A, with a 230VAC supply for the drive mechanism. It is used to convert manually operated units to remote or automatic actuation within power distribution assemblies. Typical application is in control panels where remote switching of high-current circuits is required.

Specifications
Specifications
x
SeriesUM-C
Operational Torque (Sizes 0-1)20 Nm
Operational Torque (Size 2)30 Nm
Voltage Supply230 Vac/dc
Operating Voltage Range (Sizes 0-1)0.85*V to 1.15*V
Operating Voltage Range (Size 2)0.85*V to 1.10*V
Cable Section of Voltage Supply1.5 - 2.5 mm²
Cable Section Area Input Signals0.5 - 1.5 mm²
Cable Section Area Auto-Lock Mode Outputs0.5 - 1.5 mm²
Inrush Current1.1 A
Use Current (lrms)45 mA
Use Current (lmax)137 mA
Protective Fuse Reference1 A
Operating Angle-70º / 0º / +70º
Number of UM Operations (Sizes 0-1)8000 cycles
Number of UM Operations (Size 2)5000 cycles
Operation Rate120 cycles/hour (Sizes 0-1)
Working Temperature Range-25ºC to +55ºC
Transportation and Storage Temperature-40ºC to +70ºC
UM Weight1.8 Kg
Overall Width (top view)250 mm
Width of Control Panel (top view)76 mm
Overall Height (left view)145 mm
Height of Control Panel (left view)115 mm
Depth of Control Panel (left view)43 mm
Knob Protrusion (left view)8 mm
Knob Mounting Offset (left view)90 mm
Overall Width (right view)103 mm
Width of Control Panel (right view)5 mm
Width of Handle (right view)68 mm
Width of Cable Gland (right view)15 mm
Height of Control Panel (right view)12.5 mm
